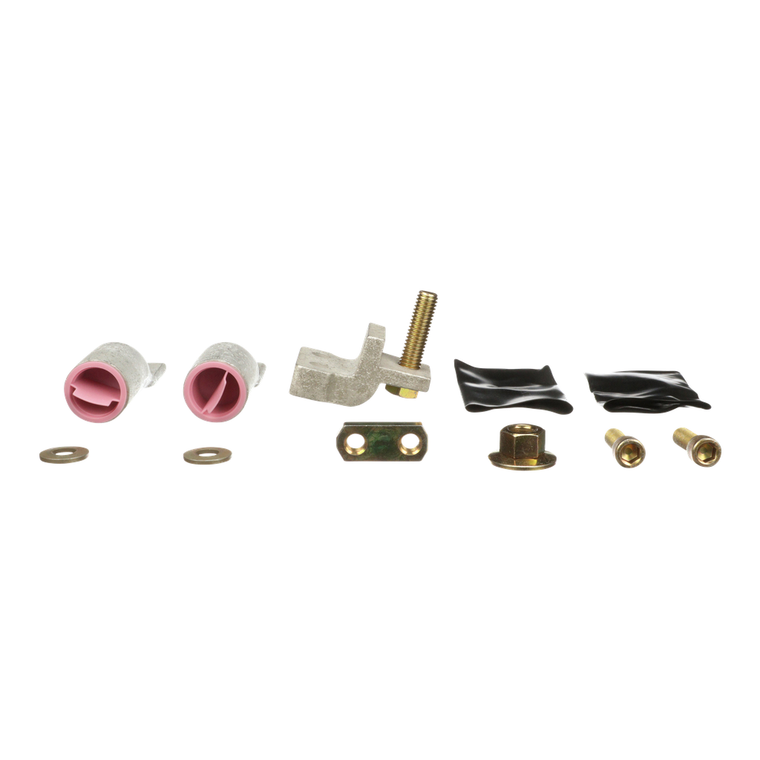

Schneider Electric YA800P7 Circuit Breaker Compression Lug Kit 2

Schneider Electric YA800P7 Circuit Breaker Compression Lug Kit 2

Schneider Electric
SKU:
YA800P7
|
UPC:
785901682882
Availability:
Contact us to confirm availability and lead times.
$845.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Square D PowerPact family is industry leading innovation and protection for heavy duty commercial and industrial appliacations Common catalog numbers, standardized ratings, and a full range of field-installable accessories make product selection, installation and maintenance easier than ever. This compression lug kit is designed to be used with unit mount or I-Line PowerPact M-frame, P-frame 3 pole circuit breakers with Electronic trip units and NS630b–NS1200 circuit breakers This lugs have rating as 800A for aluminium and needed 2 of each per terminal. Terminal wire range for this accessory is 2 wires of 750 kcmil - 500 kcmil aluminium or 500 kcmil copper. Connector accessory is coming as 2 lugs per kit and has dimensions as 4.3inches Height.
Additional Information
Product Or Component Type:
mechanical lug
Quantity Per Set:
set of 2
Circularity Profile:
ENVEOLI1312003EN
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Accessory / Separate Part Category:
connection accessory
Sustainable Offer Status:
Green Premium product
Tightening Torque:
28-28 N.m 240-400 mm² (500...750 kcmil)
Range Of Product:
PowerPact M || PowerPact P
Awg Gauge:
500...750 kcmil aluminium || 500 kcmil copper
Eu Rohs Directive:
Compliant with Exemptions
Material:
aluminium
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Mounting Mode:
unit mount || compression
Product Certifications:
CSA || UL
Mercury Free:
Yes
Pvc Free:
Yes
Environmental Disclosure:
ENVPEP1312003EN
Rohs Exemption Information:
Yes
Warranty:
18 months
California Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Line Rated Current:
800-800 A
