Schneider Electric ZA2BS944 Pushbutton
Schneider Electric
$112.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZA2BS944 Pushbutton

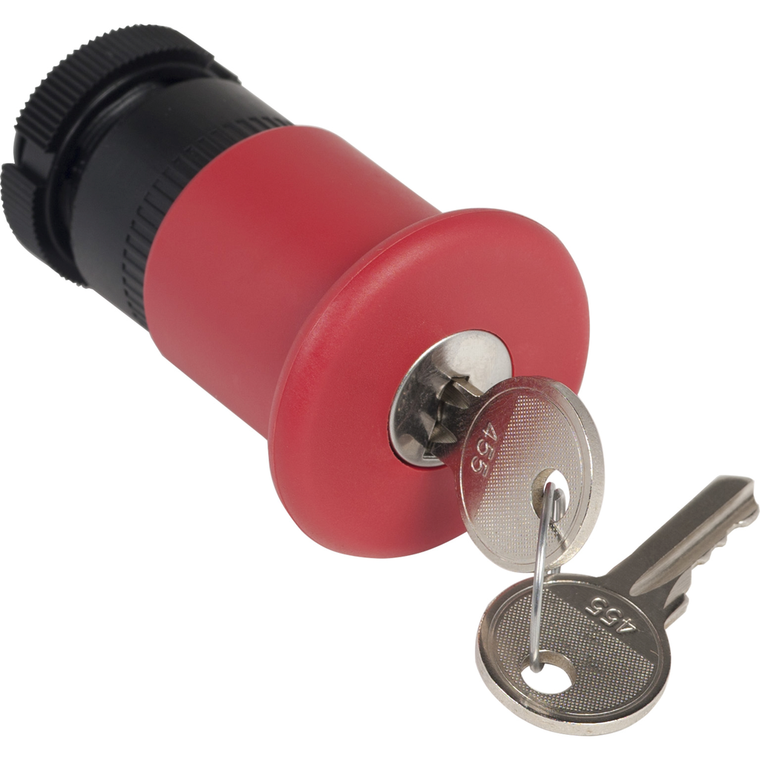

This Harmony ZA2BS944 is a red diameter 40mm Emergency stop, switching off head trigger and latching key release. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
- Standards:
- UL 508 || CSA C22.2 No 14 || IEC 60947-5-5 || IEC 60947-5-1 || IEC 60204-32 || IEC 62262
- Rohs Exemption Information:
- Yes
- Range Of Product:
- Harmony XAC
- Warranty:
- 18 months
- Marking:
- unmarked
- Sale Per Indivisible Quantity:
- 1
- Mercury Free:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mounting Location:
- front of enclosure
- Ambient Air Temperature For Operation:
- -25-70 °C
- Ik Degree Of Protection:
- IK08
- Environmental Disclosure:
- ENVPEP1710010EN
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc:
- Yes
- Vibration Resistance:
- 15 gn 10-500 Hz)IEC 60068-2-6
- Overvoltage Category:
- class II IEC 61140
- Product Or Component Type:
- head for emergency switching off push-button
- Sustainable Offer Status:
- Green Premium product
- Product Compatibility:
- XACA..
- Circularity Profile:
- ENVEOLI1710010EN
- Toxic Heavy Metal Free:
- Yes
- Net Weight:
- 0.065 kg
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Operator Profile:
- red mushroom à 40 mm
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
