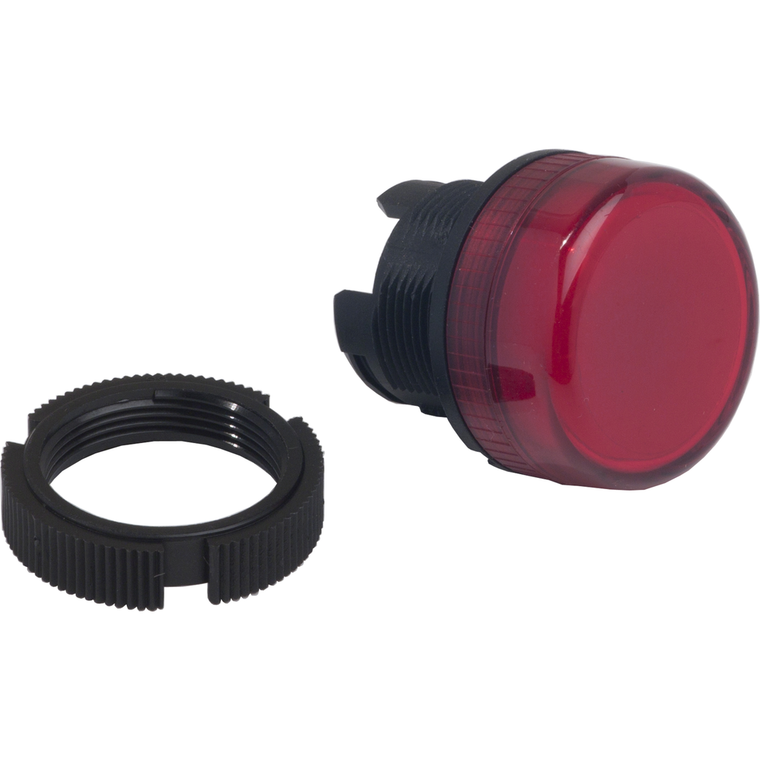

Schneider Electric ZA2BV04 Pilot Light Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZA2BV04 Pilot Light Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZA2BV04

UPC:

3389110645378

MPN:

Condition:

New

Reach Free Of Svhc:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

Warranty:

18 months

Reach Regulation:

Free of Substances of Very High Concern above the threshold

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Environmental Disclosure:

ENVPEP1710010EN

Sustainable Offer Status:

Green Premium product

Compatibility Code:

ZA2B

Rohs Exemption Information:

Yes

Mechanical Durability:

1000000 cycles

Overvoltage Category:

class II IEC 61140

Shock Resistance:

100 gn IEC 60068-2-27

Standards:

CSA C22.2 No 14 || EN/IEC 60947-5-1

Product Specific Application:

for incandescent bulb

Circularity Profile:

ENVEOLI1710010EN

China Rohs Regulation:

X

Range Of Product:

Harmony

Ambient Air Temperature For Operation:

-25-55 °C

Toxic Heavy Metal Free:

Yes

Protective Treatment:

TH

Vibration Resistance:

15 gn 10-500 Hz)IEC 60068-2-6

Cap/Operator Or Lens Colour:

red

Mercury Free:

Yes

Product Or Component Type:

head for pilot light

Net Weight:

0.015 kg

Ik Degree Of Protection:

IK08 EN 50102

Ip Degree Of Protection:

IP65 conforming to IEC 60529

Electrical Shock Protection Class:

class II IEC 61140

Datasheet:

View
