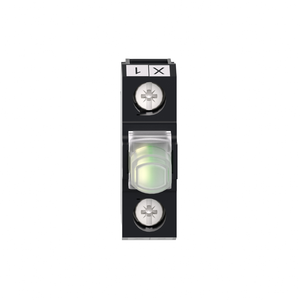

Schneider Electric ZALVM1 230V Led Cont. Box Light Pack of 5

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZALVM1 230V Led Cont. Box Light Pack of 5

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZALVM1

UPC:

3389110115215

MPN:

Condition:

New

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Ip Degree Of Protection:

IP20 IEC 60529

Ambient Air Temperature For Storage:

-40-70 °C

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Electromagnetic Emission:

class B IEC 55011

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Current Consumption:

14 mA

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Ambient Air Temperature For Operation:

-40-70 °C

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Warranty:

18 months

Device Short Name:

ZALV

Rohs Exemption Information:

Yes

Range Of Product:

Harmony XAL

Signalling Type:

steady

Mercury Free:

Yes

Sale Per Indivisible Quantity:

5

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Light Source:

universal LED

Supply Voltage Limits:

195-264 V AC

Product Or Component Type:

light block

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Toxic Heavy Metal Free:

Yes

Service Life:

100000 h at rated voltage and 25 °C

Assembly Style:

for customer assembly

Electrical Composition Code:

MR1 || PR1

Bulb Base:

integral LED

Mounting Of Block:

rear mounting

Standards:

JIS C8201-5-1 || IEC 60947-5-5 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-4 || UL 508 || IEC 60947-5-1 || JIS C8201-1

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

China Rohs Regulation:

X

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Light Block Supply:

direct

Surge Withstand:

1 kV IEC 61000-5-1

Net Weight:

0.015 kg

Product Certifications:

UL Listed || CSA

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Light Source Colour:

white

[Us] Rated Supply Voltage:

230...240 V AC

Product Destination:

for XB5 Ø 22 mm control and signalling units

Protective Treatment:

TH
