Schneider Electric ZARB10WSP Receiver Small Size 10 Rel. Pre-Wired 1.

Schneider Electric ZARB10WSP Receiver Small Size 10 Rel. Pre-Wired 1.

Schneider Electric
SKU:
ZARB10WSP
|
UPC:
3606481389121
Availability:
Contact us to confirm availability and lead times.
$630.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

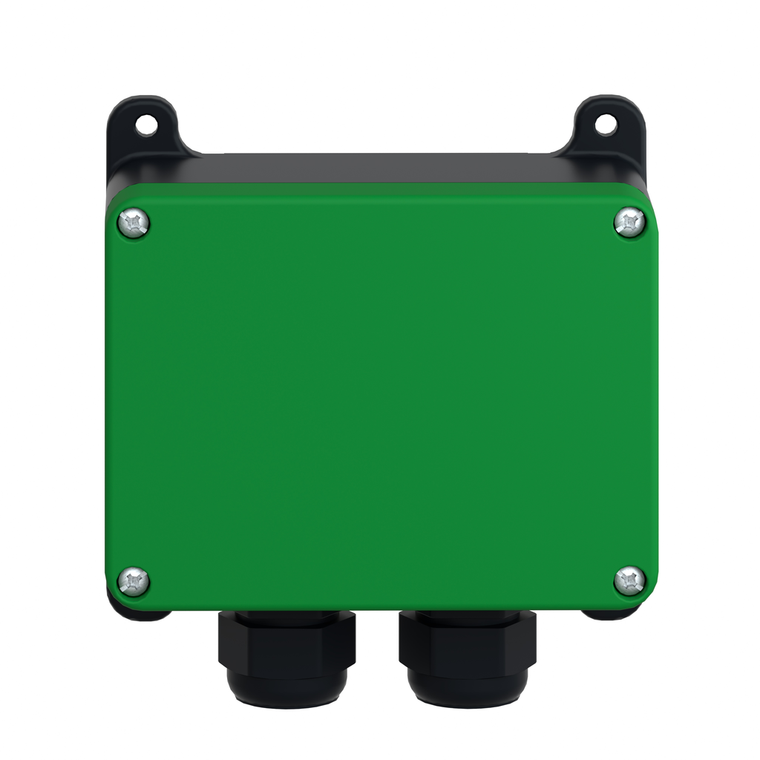

This Harmony eXLhoist / XAR green base station (receiver) has 10 relays outputs with 2 safety relays. This green base station (receiver) is designed as receiver for wireless remote control system. It has 10 relay outputs with 2 safety relays and has wired connection cable gland. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP66, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Base station (receiver) has a unique identification code to allow the consistent and stable connection with its compatible remote control system.
Additional Information
Communication Network Type:
wireless Zigbee
Maximum Switching Voltage:
240 V AC +/- 20 %)
Radio Agreement:
FCC || IC
Relay Type:
motion relay outputs 9 NO || auxiliary relay outputs 1 NO
Transmission Frequency:
2.4 GHz
Mechanical Durability:
10000000 cycles
Ip Degree Of Protection:
IP66
Product Certifications:
CE
Mercury Free:
Yes
Electrical Durability:
100000 cycles
Nominal Output Current:
0.5 A 48 V AC IEC 60947-5-1
Product Or Component Type:
base station
Relative Humidity:
0-97 %
Ambient Air Temperature For Storage:
-40-70 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Maximum Sensing Distance:
100 m in free field
Material:
ABS + PC
Width:
120 mm
Maximum Switching Current:
0.416666666666667
Provided Equipment:
internal antenna
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Height:
117 mm
China Rohs Regulation:
X
Range Of Product:
Harmony eXLhoist
Product Specific Application:
hoisting applications || material handling
Ambient Air Temperature For Operation:
-20-55 °C
Rohs Exemption Information:
Yes
Net Weight:
0.88 kg
Fixing Mode:
4 holes
Depth:
51 mm
Safety Outputs:
2 NC relay outputs
[Us] Rated Supply Voltage:
48...240 V AC
Cable Entry:
cable pre-wired
Number Of Relays:
10
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Device Short Name:
ZARB
Brochure:
View
Datasheet:
View
