Schneider Electric ZART12D Remote Disp. 4 Aux. Pushbutton
Schneider Electric
$879.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZART12D Remote Disp. 4 Aux. Pushbutton

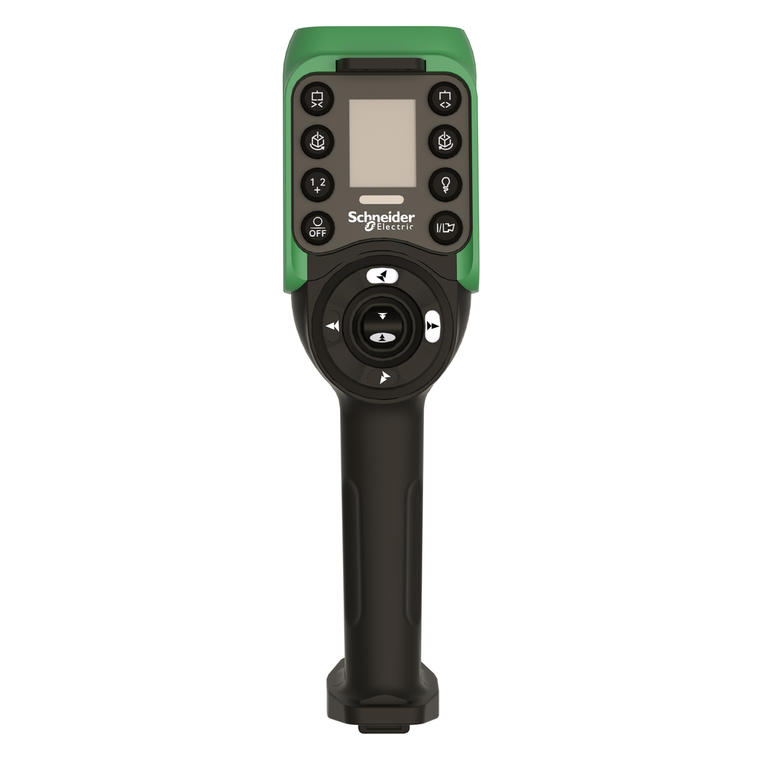

This Harmony eXLhoist / XAR black remote control (transmitter) has 6 configurable auxiliary push buttons with 6 configurable motion push buttons. It has LCD display with rechargeable battery. This remote control (transmitter) with display is designed as a transmitter for wireless remote control system. It has 6 configurable motion push buttons and 6 configurable auxiliary push buttons and can operate at a distance of 50m. It is compatible with base station ZARB18W and ZARB18H. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine.
- Range Of Product:
- Harmony eXLhoist
- Height:
- 340 mm
- Vibration Resistance:
- 0.075 mm 10-55 Hz)IEC 60068-2-6
- Function Available:
- accelerometer function || vibrator function
- Mercury Free:
- Yes
- Mechanical Robustness:
- free fall resistance 4.5 m IEC 60068-2-27
- Operating Distance:
- 50 m
- Storage Altitude:
- 0-3000 m
- Product Or Component Type:
- hand-held remote control
- Depth:
- 90 mm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ambient Air Temperature For Storage:
- -20-45 °C
- Environmental Disclosure:
- ENVPEP1403029EN
- Mechanical Durability:
- 5000000 cycles
- Autonomy:
- 30 h
- Device Short Name:
- ZART
- Ip Degree Of Protection:
- IP65
- China Rohs Regulation:
- X
- Material:
- enclosure PC (polycarbonate) || enclosure PBT (polybutylene terephthalate) || Cover PP (polypropylene) || protective cover EPDM rubber
- Service Life:
- 5 year(s)
- Net Weight:
- 0.65 kg
- Response Time:
- < 300 ms full duplex
- Circularity Profile:
- ENVEOLI1403029EN
- Transmission Frequency:
- 2.4 GHz
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Radio Agreement:
- FCC || ARIB || RSS || ICASA || ANATEL || SRRC
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Maximum Sensing Distance:
- 100 m in free field
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Relative Humidity:
- 0-95 % -20-60 °C operating
- Width:
- 100 mm
- Charging Time:
- 900 s
- Shock Resistance:
- 100 gn IEC 60068-2-27
- Control Button Type:
- 6 configurable motion push-button || 6 configurable auxiliary push-button
- Product Certifications:
- C-tick || CSA || CE || JIS || KC || EAC || UL
- Display Type:
- LCD display 34 x 42 mm
- Rohs Exemption Information:
- Yes
- Communication Network Type:
- wireless bluetooth low energy
- Nema Degree Of Protection:
- NEMA 4
- Ambient Air Temperature For Operation:
- -20-60 °C
- Catalog:
- View
- Datasheet:
- View
