Schneider Electric ZART8L Remote Led 2 Aux. Pushbutton
Schneider Electric
$601.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZART8L Remote Led 2 Aux. Pushbutton

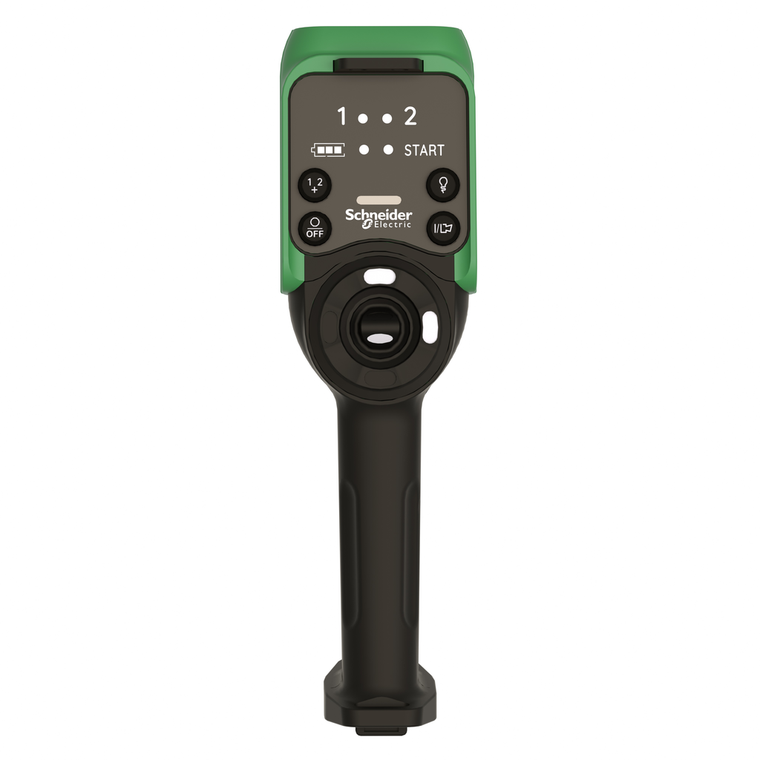

This Harmony eXLhoist / XAR black remote control (transmitter) has 2 configurable auxiliary push buttons with 6 configurable motion push buttons. It has 4 LEDs. This remote control (transmitter) with LEDs is designed as a transmitter for wireless remote control system. It has 6 configurable motion push buttons and 2 configurable auxiliary push buttons and can operate at a distance of 50m. It is compatible with base station ZARB12W and ZARB12H. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine.
- Function Available:
- accelerometer function
- Device Short Name:
- ZART
- Rohs Exemption Information:
- Yes
- Operating Distance:
- 50 m
- Vibration Resistance:
- 0.075 mm 10-55 Hz)IEC 60068-2-6
- Height:
- 340 mm
- Depth:
- 90 mm
- Shock Resistance:
- 100 gn IEC 60068-2-27
- Radio Agreement:
- SRRC || ARIB || ANATEL || ICASA || FCC || RSS
- China Rohs Regulation:
- X
- Ip Degree Of Protection:
- IP65
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Service Life:
- 5 year(s)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Net Weight:
- 0.65 kg
- Product Certifications:
- KC || C-tick || EAC || CSA || UL || CE || JIS
- Transmission Frequency:
- 2.4 GHz
- Width:
- 100 mm
- Maximum Sensing Distance:
- 100 m in free field
- Ambient Air Temperature For Storage:
- -20-45 °C
- Control Button Type:
- 6 configurable motion push-button || 2 configurable auxiliary push-button
- Display Type:
- 4 LEDs
- Circularity Profile:
- ENVEOLI1403029EN
- Mechanical Robustness:
- free fall resistance 4.5 m IEC 60068-2-27
- Material:
- enclosure PC (polycarbonate) || enclosure PBT (polybutylene terephthalate) || Cover PP (polypropylene) || protective cover EPDM rubber
- Storage Altitude:
- 0-3000 m
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Charging Time:
- 900 s
- Nema Degree Of Protection:
- NEMA 4
- Environmental Disclosure:
- ENVPEP1403029EN
- Relative Humidity:
- 0-95 % -20-60 °C operating
- Ambient Air Temperature For Operation:
- -20-60 °C
- Communication Network Type:
- wireless bluetooth low energy
- Autonomy:
- 30 h
- Response Time:
- < 300 ms full duplex
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Product Or Component Type:
- hand-held remote control
- Mechanical Durability:
- 5000000 cycles
- Range Of Product:
- Harmony eXLhoist
- Mercury Free:
- Yes
- Catalog:
- View
- Datasheet:
- View
