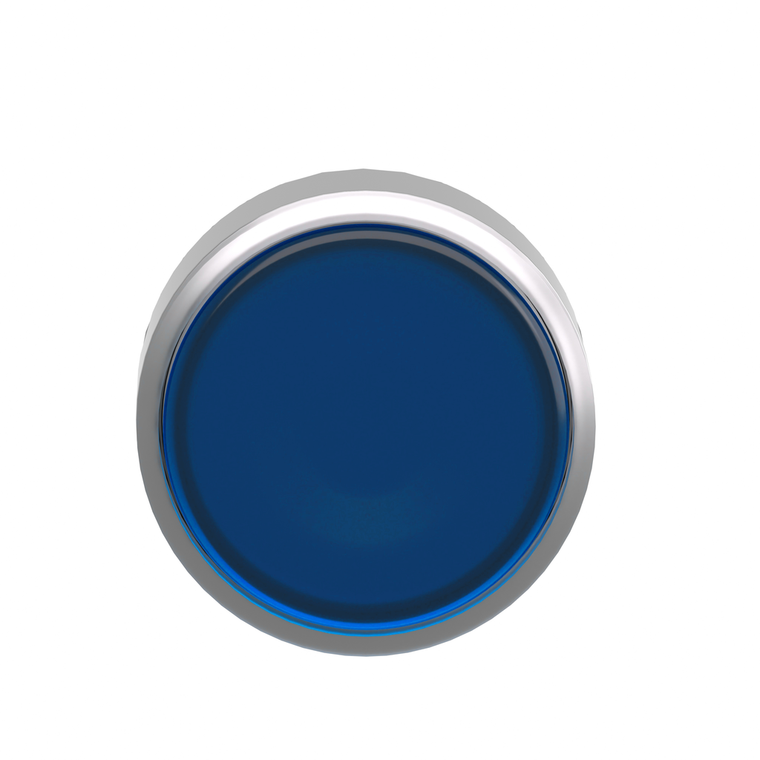

Schneider Electric ZB4BA68 Pushbutton Operator Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB4BA68 Pushbutton Operator Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BA68

UPC:

3389110887747

MPN:

Condition:

New

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Bezel Material:

chromium plated metal

Overvoltage Category:

class I IEC 60536

Range Of Product:

Harmony XB4

Net Weight:

0.028 kg

Cad Overall Width:

29 mm

Type Of Operator:

spring return

Rohs Exemption Information:

Yes

Product Compatibility:

universal LED

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Cad Overall Height:

29 mm

Reach Free Of Svhc:

Yes

Protective Treatment:

TH

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Mechanical Durability:

10000000 cycles

Warranty:

18 months

Environmental Disclosure:

ENVPEP1808008EN

Sale Per Indivisible Quantity:

1

Mercury Free:

Yes

Ik Degree Of Protection:

IK06 EN 50102

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Ambient Air Temperature For Operation:

-40-70 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Cad Overall Depth:

30 mm

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Product Or Component Type:

head for illuminated push-button

Operator Additional Information:

for insertion of legend

Electrical Composition Code:

M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || C3 6 single front mounting || C4 6 single and doub

Ambient Air Temperature For Storage:

-40-70 °C

China Rohs Regulation:

X

Standards:

UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-1

Device Short Name:

ZB4

Sustainable Offer Status:

Green Premium product

Shape Of Signaling Unit Head:

round

Toxic Heavy Metal Free:

Yes

Operator Profile:

blue flush, unmarked

Head Type:

standard

Circularity Profile:

ENVEOLI1808008EN

Device Presentation:

basic element

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Diameter:

22 mm

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Product Certifications:

BV || GL || LROS (Lloyds register of shipping) || DNV || UL Listed || CSA
