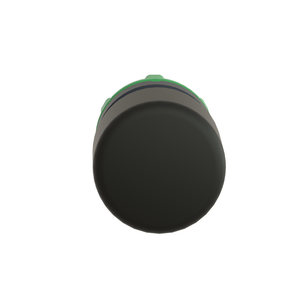

Schneider Electric ZB4BC2 Mushroomm Push But Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB4BC2 Mushroomm Push But Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BC2

UPC:

3389110888430

MPN:

Condition:

New

Mercury Free:

Yes

Ik Degree Of Protection:

IK06 IEC 50102

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Ip Degree Of Protection:

IP66 IEC 60529 || IP69 || IP69K

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Ambient Air Temperature For Operation:

-40-70 °C

Type Of Operator:

spring return

Sale Per Indivisible Quantity:

1

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Shape Of Signaling Unit Head:

round

Operator Profile:

black mushroom Ø 40 mm, unmarked

Overvoltage Category:

class I IEC 60536

Reach Free Of Svhc:

Yes

Toxic Heavy Metal Free:

Yes

Protective Treatment:

TH

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Range Of Product:

Harmony XB4

Standards:

EN/IEC 60947-1 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-1 || JIS C8201-1

Environmental Disclosure:

ENVPEP1808008EN

Mechanical Durability:

5000000 cycles

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Rohs Exemption Information:

Yes

Cad Overall Depth:

52 mm

Sustainable Offer Status:

Green Premium product

Mounting Diameter:

22 mm

Ambient Air Temperature For Storage:

-40-70 °C

China Rohs Regulation:

X

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Head Type:

standard

Bezel Material:

chromium plated metal

Device Presentation:

basic element

Product Certifications:

LROS (Lloyds register of shipping) || CSA || UL Listed || GL || BV || DNV

Product Or Component Type:

head for non-illuminated push-button

Cad Overall Width:

40 mm

Electrical Composition Code:

C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting

Warranty:

18 months

Circularity Profile:

ENVEOLI1808008EN

Device Short Name:

ZB4

Cad Overall Height:

40 mm
