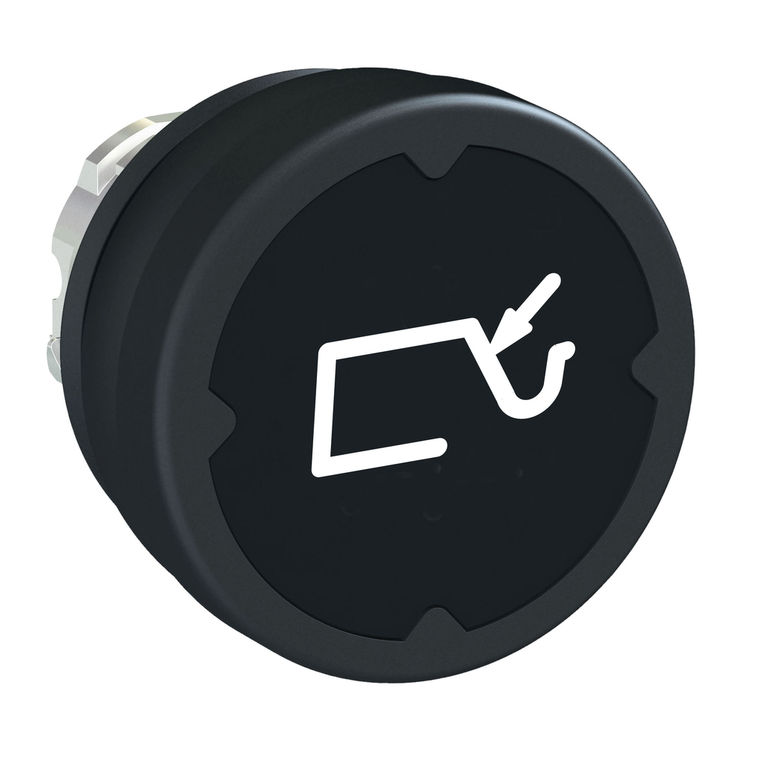

Schneider Electric ZB4BC28010 Pushbutton For Harsh Enviroment, Black,

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB4BC28010 Pushbutton For Harsh Enviroment, Black,

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BC28010

UPC:

3606480444142

MPN:

Condition:

New

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Warranty:

18 months

Ik Degree Of Protection:

IK06 IEC 62262

Type Of Operator:

spring return

Resistance To High Pressure Washer:

90 Pa 82.5 °C

Cap/Operator Or Lens Colour:

black

Mercury Free:

Yes

Bezel Material:

chromium plated metal

Device Short Name:

ZB4

China Rohs Regulation:

X

Rohs Exemption Information:

Yes

Head Type:

standard

Toxic Heavy Metal Free:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27

Sale Per Indivisible Quantity:

1

Circularity Profile:

ENVEOLI1808008EN

Range Of Product:

Harmony XB4

Cad Overall Width:

37 mm

Product Certifications:

CSA || UL || CE

Operator Profile:

black flush, type H010 white)

Marking:

type H010

Ambient Air Temperature For Storage:

-40-85 °C

Ip Degree Of Protection:

IP66 IEC 60529 || IP69K || IP67 || IP69

Main Group:

harsh environment

Group Of Product:

flush marked type H010

Cad Overall Depth:

37 mm

Cad Overall Height:

18.5 mm

Net Weight:

0.036 kg

Product Or Component Type:

head for push-button

Environmental Disclosure:

ENVPEP1808008EN

Standards:

IEC 60947-1 || CSA C22.2 || UL 508 || IEC 60947-5-1

Reach Free Of Svhc:

Yes

Nema Degree Of Protection:

NEMA 4 UL 508 || NEMA 13 || NEMA 12

Operator Additional Information:

vertical mounting

Electrical Shock Protection Class:

class I IEC 61140

Ambient Air Temperature For Operation:

-40-70 °C

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Colour Of Marking:

white

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mechanical Durability:

10000000 cycles

Sustainable Offer Status:

Green Premium product

Electrical Composition Code:

C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting

Shape Of Signaling Unit Head:

round

Mounting Diameter:

22 mm
