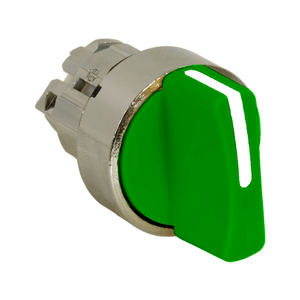

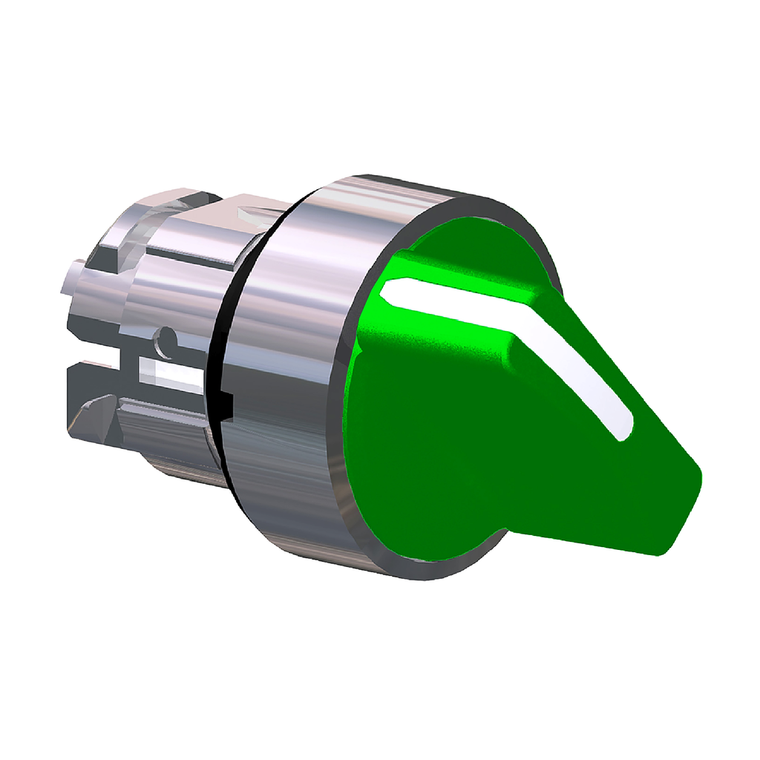

Schneider Electric ZB4BD203 Green Selector Head
This Harmony XB4, green selector switch head with standard handle has 2 positions, operates with stay-put mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Ambient Air Temperature For Operation:
- -40-70 °C
- Device Presentation:
- basic element
- Environmental Disclosure:
- ENVPEP1808008EN
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
- Head Type:
- standard
- Protective Treatment:
- TH
- Operator Position Information:
- 2 positions 90°
- Cad Overall Height:
- 29 mm
- Reach Free Of Svhc:
- Yes
- Product Certifications:
- DNV || GL || CSA || BV || UL Listed || LROS (Lloyds register of shipping)
- Mercury Free:
- Yes
- Cad Overall Depth:
- 44 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Standards:
- EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || JIS C8201-1
- Device Short Name:
- ZB4
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation:
- X
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 || IP69K
- Operator Profile:
- green standard handle
- Rohs Exemption Information:
- Yes
- Shape Of Signaling Unit Head:
- round
- Cad Overall Width:
- 29 mm
- Net Weight:
- 0.04 kg
- Warranty:
- 18 months
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ik Degree Of Protection:
- IK06 IEC 50102
- Circularity Profile:
- ENVEOLI1808008EN
- Range Of Product:
- Harmony XB4
- Ambient Air Temperature For Storage:
- -40-70 °C
- Overvoltage Category:
- class I IEC 60536
- Bezel Material:
- chromium plated metal
- Mechanical Durability:
- 1000000 cycles
- Product Or Component Type:
- head for selector switch
- Toxic Heavy Metal Free:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Mounting Diameter:
- 22 mm
- Type Of Operator:
- stay put
- Sustainable Offer Status:
- Green Premium product
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Sale Per Indivisible Quantity:
- 1
