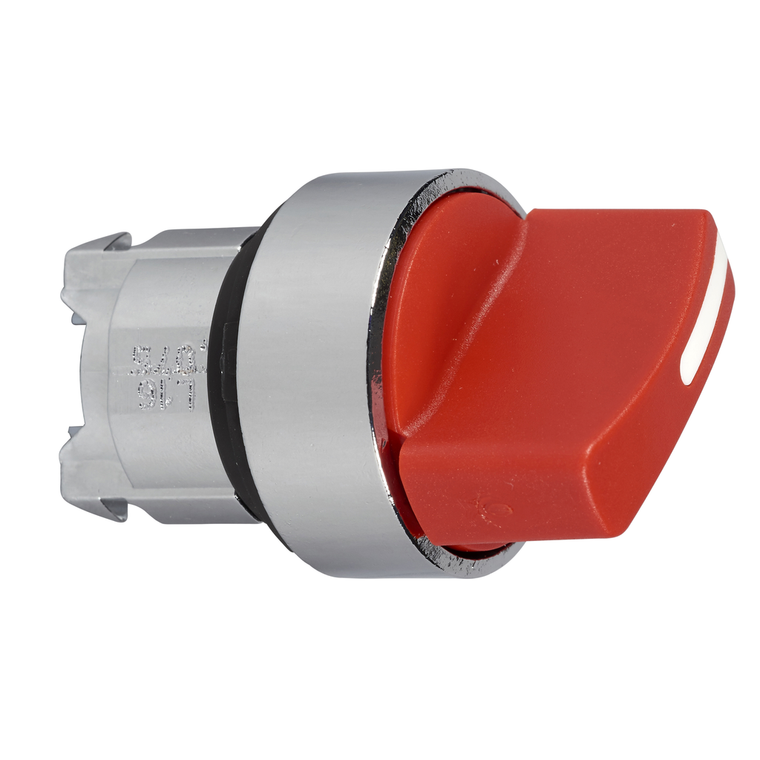

Schneider Electric ZB4BD204 Red Selector Head
Schneider Electric
$24.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB4BD204 Red Selector Head
This Harmony XB4, red selector switch head with standard handle has 2 positions, operates with stay-put mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Device Presentation:
- basic element
- Reach Free Of Svhc:
- Yes
- Environmental Disclosure:
- ENVPEP1808008EN
- Cad Overall Width:
- 29 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operator Position Information:
- 2 positions 90°
- Cad Overall Height:
- 29 mm
- Mercury Free:
- Yes
- Mounting Diameter:
- 22 mm
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Operation:
- -40-70 °C
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 || IP69K
- Sale Per Indivisible Quantity:
- 1
- Overvoltage Category:
- class I IEC 60536
- Cad Overall Depth:
- 44 mm
- Device Short Name:
- ZB4
- Warranty:
- 18 months
- Bezel Material:
- chromium plated metal
- Ambient Air Temperature For Storage:
- -40-70 °C
- Circularity Profile:
- ENVEOLI1808008EN
- Type Of Operator:
- stay put
- Rohs Exemption Information:
- Yes
- Operator Profile:
- red standard handle
- Range Of Product:
- Harmony XB4
- Head Type:
- standard
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Product Certifications:
- UL Listed || LROS (Lloyds register of shipping) || GL || CSA || BV || DNV
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ik Degree Of Protection:
- IK06 IEC 50102
- Product Or Component Type:
- head for selector switch
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mechanical Durability:
- 1000000 cycles
- Protective Treatment:
- TH
- Toxic Heavy Metal Free:
- Yes
- Shape Of Signaling Unit Head:
- round
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Standards:
- EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || UL 508 || JIS C8201-1
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- China Rohs Regulation:
- X
- Net Weight:
- 0.04 kg
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
