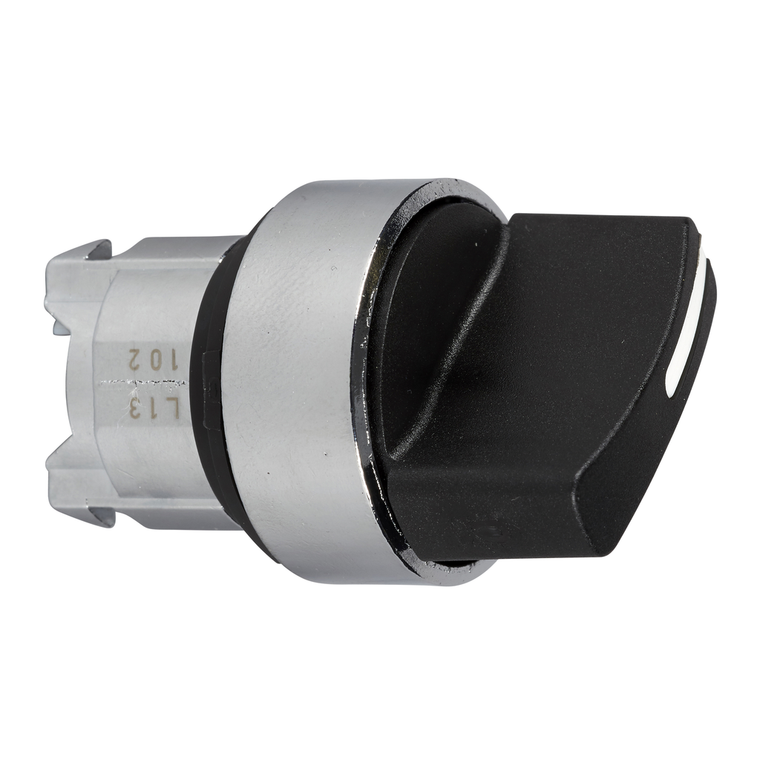

Schneider Electric ZB4BD2TQ Selec To R Switch Head 2 Positions Diam Pack of 100

Schneider Electric ZB4BD2TQ Selec To R Switch Head 2 Positions Diam Pack of 100

Schneider Electric
SKU:
ZB4BD2TQ
|
UPC:
3.38911E+12
Availability:
Contact us to confirm availability and lead times.
$2,400.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
XB4/ZB4 22mm push buttons are for industrial applications. XB4/ZB4 operators have chromium plated metal bezels that connect to a fully metal mounting collar. This is a 22mm 2 position selector switch. The selector switch positions are 90 degrees apart. The selector switch has a standard black knob. Selector switch is 1.14 inches tall, 1.14 inches wide and 1.73 inches deep. Selector switch weighs 0.09 lbs. Operator is NEMA 4, 4X and 13 rated. Selector switch is UL listed and CSA certified. "This product meets UL 508, EN/IEC 60947-5-5, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-1, JIS C8201-5-1, EN/IEC 60947-5-4 and JIS C8201-1 standards." "It is sold in 100 per indivisible quantity." "Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines and processes." "The modular range of 22mm metal control and signaling units combine simplicity of installation, modern standard and flush mounted design."
Additional Information
Head Type:
standard
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Sustainable Offer Status:
Green Premium product
Standards:
UL 508 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
Mechanical Durability:
1000000 cycles
China Rohs Regulation:
X
Electrical Composition Code:
C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
Product Or Component Type:
head for selector switch
Ip Degree Of Protection:
IP67 IEC 60529 || IP69 || IP69K
Product Certifications:
CSA || BV || UL Listed || LROS (Lloyds register of shipping) || GL || DNV
Protective Treatment:
TH
Toxic Heavy Metal Free:
Yes
Ik Degree Of Protection:
IK06 IEC 50102
Type Of Operator:
stay put
Shape Of Signaling Unit Head:
round
Environmental Disclosure:
ENVPEP1808008EN
Cad Overall Width:
29 mm
Cad Overall Depth:
44 mm
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Cad Overall Height:
29 mm
Warranty:
18 months
Circularity Profile:
ENVEOLI1808008EN
Mercury Free:
Yes
Operator Profile:
black standard handle
Range Of Product:
Harmony XB4
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sale Per Indivisible Quantity:
100
Operator Position Information:
2 positions 90°
Ambient Air Temperature For Operation:
-40-70 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Bezel Material:
chromium plated metal
Device Short Name:
ZB4
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage:
-40-70 °C
Overvoltage Category:
class I IEC 60536
Reach Free Of Svhc:
Yes
Rohs Exemption Information:
Yes
Mounting Diameter:
22 mm
