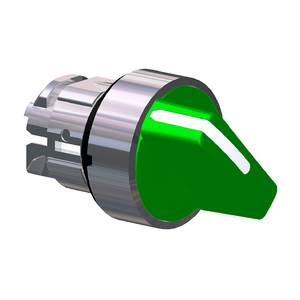

Schneider Electric ZB4BD503 Green Selector Head
Schneider Electric
$32.41
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, green selector switch head with standard handle has 3 positions, operates with spring return to center mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 || IP69K
- Reach Free Of Svhc:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting
- Net Weight:
- 0.04 kg
- Device Short Name:
- ZB4
- Operator Position Information:
- 3 positions +/- 45°
- Cad Overall Height:
- 29 mm
- Ik Degree Of Protection:
- IK06 IEC 50102
- Product Or Component Type:
- head for selector switch
- Overvoltage Category:
- class I IEC 60536
- Cad Overall Width:
- 29 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Protective Treatment:
- TH
- Range Of Product:
- Harmony XB4
- Mounting Diameter:
- 22 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Toxic Heavy Metal Free:
- Yes
- Circularity Profile:
- ENVEOLI1808008EN
- Shape Of Signaling Unit Head:
- round
- Environmental Disclosure:
- ENVPEP1808008EN
- Cad Overall Depth:
- 44 mm
- Warranty:
- 18 months
- Sale Per Indivisible Quantity:
- 1
- Type Of Operator:
- to centre spring return
- Product Certifications:
- GL || BV || UL Listed || CSA || LROS (Lloyds register of shipping) || DNV
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- China Rohs Regulation:
- X
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mercury Free:
- Yes
- Mechanical Durability:
- 1000000 cycles
- Standards:
- JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || JIS C8201-1
- Head Type:
- standard
- Device Presentation:
- basic element
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Rohs Exemption Information:
- Yes
- Bezel Material:
- chromium plated metal
- Operator Profile:
- green standard handle
