Schneider Electric ZB4BD57 Selec To R Switch Head 3 Positions Diam

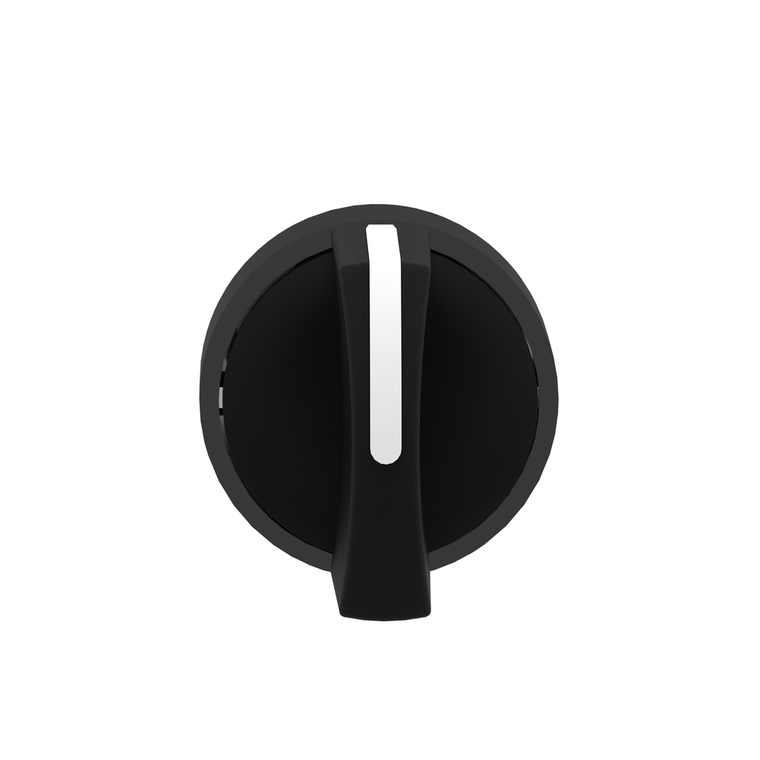

This Harmony XB4, black selector switch head with standard handle has 3 positions, operates with spring return to center mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- China Rohs Regulation:
- X
- Protective Treatment:
- TH
- Mechanical Durability:
- 1000000 cycles
- Range Of Product:
- Harmony XB4
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Rohs Exemption Information:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Device Presentation:
- basic element
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Circularity Profile:
- ENVEOLI1808008EN
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Environmental Disclosure:
- ENVPEP1808008EN
- Operator Position Information:
- 3 positions +/- 45°
- Product Certifications:
- GL || CSA || LROS (Lloyds register of shipping) || DNV || UL Listed || BV
- Cad Overall Depth:
- 44 mm
- Cad Overall Width:
- 29 mm
- Mercury Free:
- Yes
- Operator Profile:
- black standard handle
- Mounting Diameter:
- 22 mm
- Toxic Heavy Metal Free:
- Yes
- Product Or Component Type:
- head for selector switch
- Ambient Air Temperature For Operation:
- -40-70 °C
- Standards:
- JIS C8201-5-1 || IEC 60947-5-5 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-4 || UL 508 || JIS C8201-1
- Overvoltage Category:
- class I IEC 60536
- Ambient Air Temperature For Storage:
- -40-70 °C
- Net Weight:
- 0.04 kg
- Shape Of Signaling Unit Head:
- round
- Type Of Operator:
- to centre spring return
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 || IP69K
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ik Degree Of Protection:
- IK06 IEC 50102
- Bezel Material:
- black metal
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting
- Reach Free Of Svhc:
- Yes
- Cad Overall Height:
- 29 mm
- Head Type:
- standard
- Warranty:
- 18 months
- Device Short Name:
- ZB4
- Sale Per Indivisible Quantity:
- 1
