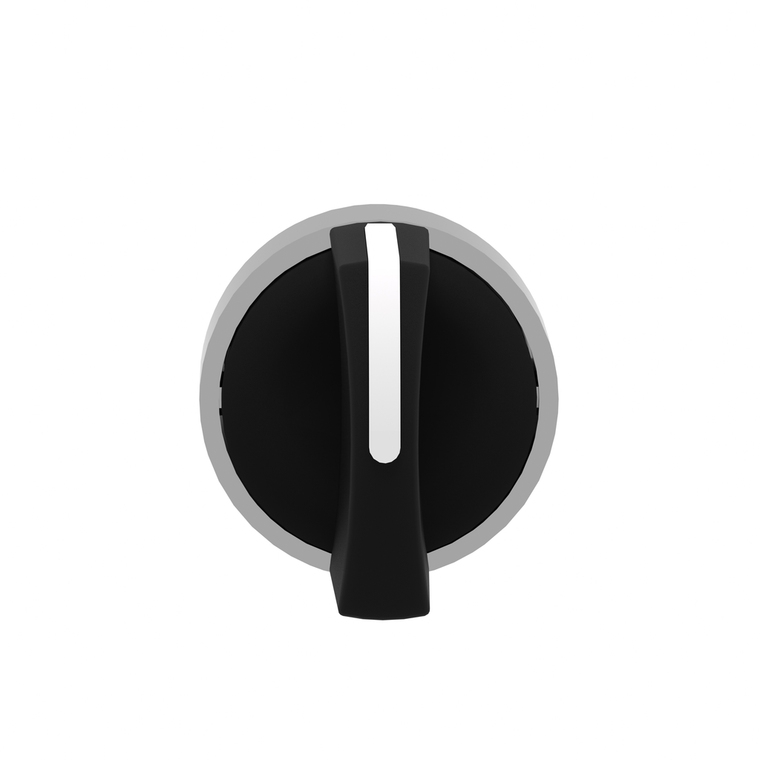

Schneider Electric ZB4BD7 Selector Operating Head
Schneider Electric
$21.61
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, black selector switch head with standard handle has 3 positions, operates with spring return from left to center mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Sale Per Indivisible Quantity:
- 1
- Ik Degree Of Protection:
- IK06 IEC 50102
- Operator Position Information:
- 3 positions +/- 45°
- Rohs Exemption Information:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Standards:
- UL 508 || JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-5 || JIS C8201-1
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 || IP69K
- Cad Overall Width:
- 29 mm
- Sustainable Offer Status:
- Green Premium product
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Mounting Diameter:
- 22 mm
- Device Presentation:
- basic element
- Environmental Disclosure:
- ENVPEP1808008EN
- Warranty:
- 18 months
- Range Of Product:
- Harmony XB4
- Shape Of Signaling Unit Head:
- round
- Ambient Air Temperature For Operation:
- -40-70 °C
- Device Short Name:
- ZB4
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Operator Profile:
- black standard handle
- Product Certifications:
- CSA || LROS (Lloyds register of shipping) || DNV || UL Listed || GL || BV
- Bezel Material:
- chromium plated metal
- Protective Treatment:
- TH
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Head Type:
- standard
- Circularity Profile:
- ENVEOLI1808008EN
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Cad Overall Depth:
- 44 mm
- Cad Overall Height:
- 29 mm
- Type Of Operator:
- left to centre spring return
- Product Or Component Type:
- head for selector switch
- Mechanical Durability:
- 1000000 cycles
- Toxic Heavy Metal Free:
- Yes
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- China Rohs Regulation:
- X
- Mercury Free:
- Yes
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting
- Reach Free Of Svhc:
- Yes
- Net Weight:
- 0.04 kg
- Overvoltage Category:
- class I IEC 60536
- Ambient Air Temperature For Storage:
- -40-70 °C
