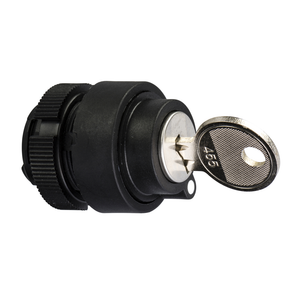

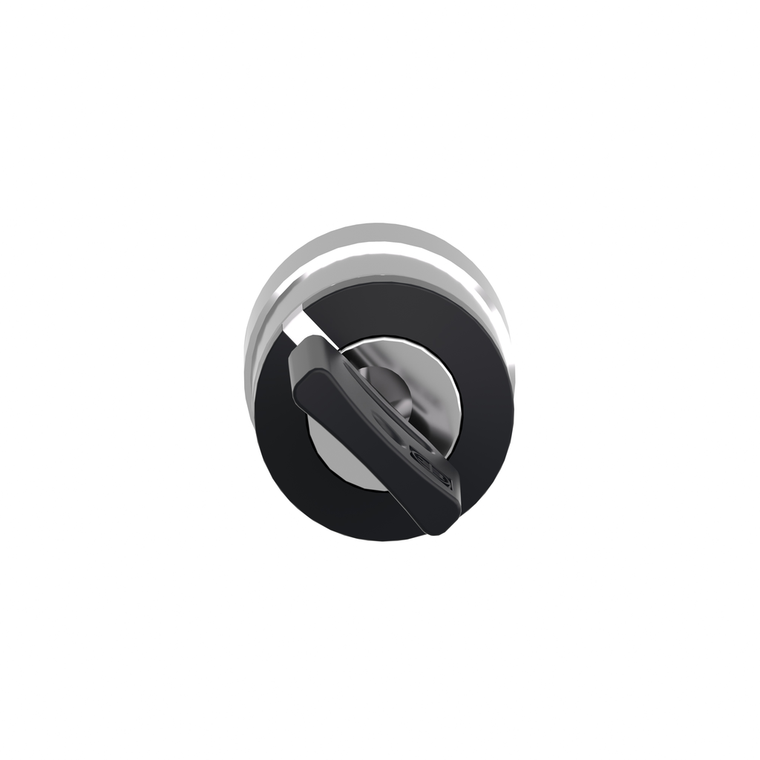

Schneider Electric ZB4BG02 Key Switch Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB4BG02 Key Switch Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BG02

UPC:

3389110368611

MPN:

Condition:

New

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Sustainable Offer Status:

Green Premium product

Shape Of Signaling Unit Head:

round

Standards:

CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || GB 14048.5 || EN/IEC 60947-5-1

Circularity Profile:

ENVEOLI1808008EN

China Rohs Regulation:

X

Device Presentation:

basic element

Operator Profile:

black key switch

Range Of Product:

Harmony XB4

Head Type:

standard

Mounting Diameter:

22 mm

Mechanical Durability:

1000000 cycles

Device Short Name:

ZB4

Cad Overall Width:

29 mm

Mercury Free:

Yes

Cad Overall Height:

29 mm

Type Of Operator:

stay put

Rohs Exemption Information:

Yes

Sale Per Indivisible Quantity:

1

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Bezel Material:

chromium plated metal

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Warranty:

18 months

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Ambient Air Temperature For Operation:

-40-70 °C

Product Or Component Type:

head for key selector switch

Product Certifications:

UL Listed || DNV || GL || LROS (Lloyds register of shipping) || BV || CSA

Operator Position Information:

2 positions 90°

Ambient Air Temperature For Storage:

-40-70 °C

Net Weight:

0.098 kg

Electrical Composition Code:

C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1

Ik Degree Of Protection:

IK06 with keyhole cover ZBGP conforming to IEC 50102

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Key Withdrawal Position:

right

Type Of Keylock:

key 455

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Environmental Disclosure:

ENVPEP1808008EN

Cad Overall Depth:

72 mm

Protective Treatment:

TH

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Overvoltage Category:

class I IEC 60536
