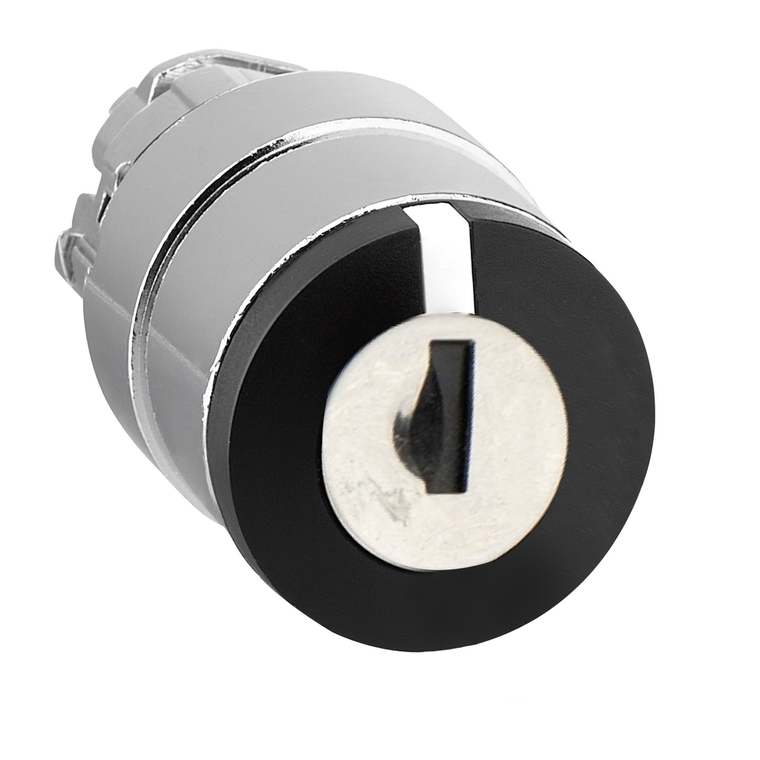

Schneider Electric ZB4BG04 Pushbutton

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB4BG04 Pushbutton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BG04

UPC:

3.38911E+12

MPN:

Condition:

New

Cad Overall Height:

29 mm

Type Of Keylock:

key 455

Rohs Exemption Information:

Yes

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Key Withdrawal Position:

right and center

Shape Of Signaling Unit Head:

round

Operator Profile:

black key switch

Head Type:

standard

Ambient Air Temperature For Storage:

-40-70 °C

Warranty:

18 months

Sustainable Offer Status:

Green Premium product

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Certifications:

DNV || CSA || LROS (Lloyds register of shipping) || UL Listed || GL || BV

Type Of Operator:

stay put

Product Or Component Type:

head for key selector switch

Overvoltage Category:

class I IEC 60536

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Device Presentation:

basic element

Cad Overall Width:

29 mm

Mounting Diameter:

22 mm

Cad Overall Depth:

72 mm

Device Short Name:

ZB4

Mechanical Durability:

1000000 cycles

Bezel Material:

chromium plated metal

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Standards:

EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || GB 14048.5

Sale Per Indivisible Quantity:

1

Electrical Composition Code:

C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting

Ik Degree Of Protection:

IK06 with keyhole cover ZBGP conforming to IEC 50102

Ambient Air Temperature For Operation:

-40-70 °C

Operator Position Information:

3 positions +/- 45°

Net Weight:

0.098 kg

Protective Treatment:

TH

Circularity Profile:

ENVEOLI1808008EN

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

China Rohs Regulation:

X

Range Of Product:

Harmony XB4

Environmental Disclosure:

ENVPEP1808008EN

Mercury Free:

Yes

Nema Degree Of Protection:

NEMA 13 || NEMA 4X
