Schneider Electric ZB4BG220 Key Selector Operating He
Schneider Electric
$90.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB4BG220 Key Selector Operating He

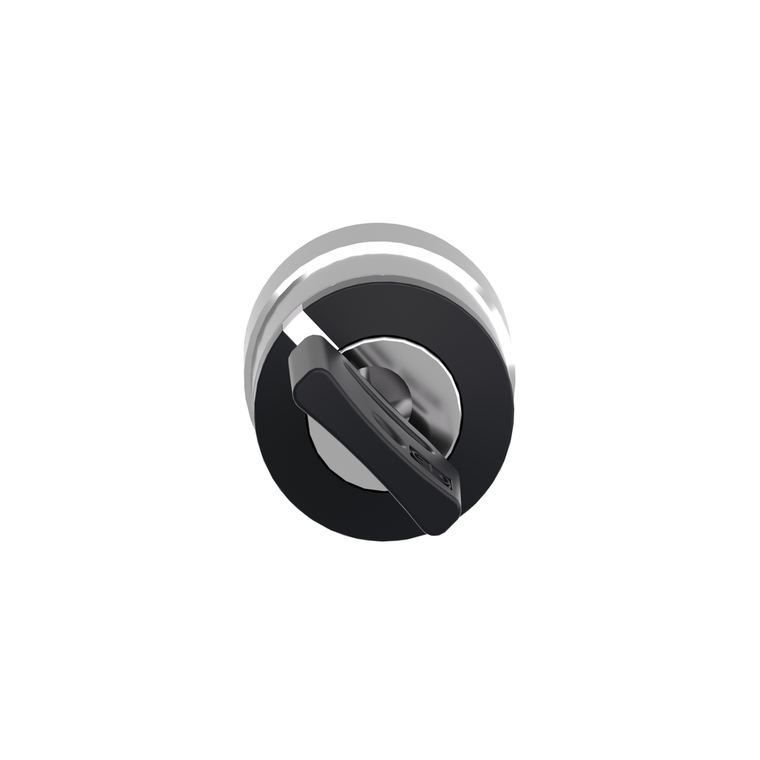

This Harmony XB4, black head with key (key no.3131A) for key selector switch has 2 positions, operates with stay-put mechanism with key withdrawal on left position. This head with key provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units to provide a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Secure machine and system operation with a key, only available to authorized operators. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Key removal allowed in only one of the positions, allowing for advanced interlocking between various parts of a machine or process, while limiting human errors.
- China Rohs Regulation:
- X
- Type Of Keylock:
- key 3131A
- Environmental Disclosure:
- ENVPEP1808008EN
- Head Type:
- standard
- Key Withdrawal Position:
- left
- Sale Per Indivisible Quantity:
- 1
- Standards:
- GB 14048.5 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || EN/IEC 60947-5-1
- Mounting Diameter:
- 22 mm
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Width:
- 29 mm
- Mercury Free:
- Yes
- Bezel Material:
- chromium plated metal
- Operator Profile:
- black key switch
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mechanical Durability:
- 1000000 cycles
- Cad Overall Height:
- 29 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Overvoltage Category:
- class I IEC 60536
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Device Presentation:
- basic element
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Protective Treatment:
- TH
- Product Or Component Type:
- head for key selector switch
- Rohs Exemption Information:
- Yes
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Warranty:
- 18 months
- Operator Position Information:
- 2 positions 90°
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Circularity Profile:
- ENVEOLI1808008EN
- Product Certifications:
- DNV || LROS (Lloyds register of shipping) || UL Listed || BV || GL || CSA
- Shape Of Signaling Unit Head:
- round
- Range Of Product:
- Harmony XB4
- Net Weight:
- 0.098 kg
- Sustainable Offer Status:
- Green Premium product
- Cad Overall Depth:
- 72 mm
- Device Short Name:
- ZB4
