Schneider Electric ZB4BG310 Key Selector Operating He

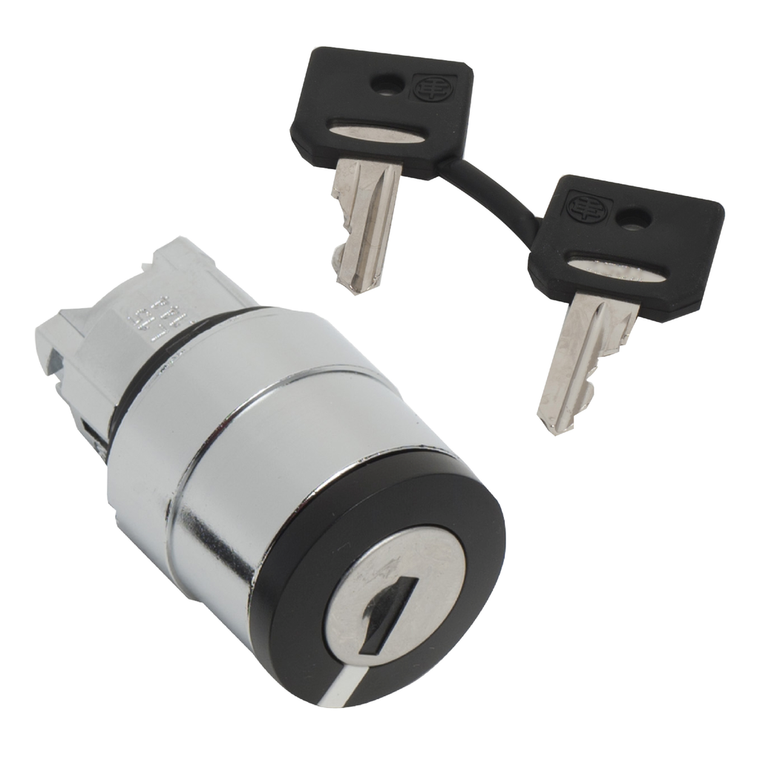

This Harmony XB4, black head with key (key no.458A) for key selector switch has 3 positions, operates with stay-put mechanism with key withdrawal on center position. It has a chromium-plated metal bezel. This head with key provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units to provide a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Secure machine and system operation with a key, only available to authorized operators. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Key removal allowed in only one of the positions, allowing for advanced interlocking between various parts of a machine or process, while limiting human errors.
- Type Of Operator:
- stay put
- Product Or Component Type:
- head for key selector switch
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sale Per Indivisible Quantity:
- 1
- Environmental Disclosure:
- ENVPEP1808008EN
- Mounting Diameter:
- 22 mm
- Operator Profile:
- black key switch
- Key Withdrawal Position:
- center
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Ambient Air Temperature For Operation:
- -40-70 °C
- Net Weight:
- 0.098 kg
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Device Short Name:
- ZB4
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Depth:
- 72 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Range Of Product:
- Harmony XB4
- Warranty:
- 18 months
- Cad Overall Height:
- 29 mm
- Rohs Exemption Information:
- Yes
- Overvoltage Category:
- class I IEC 60536
- Circularity Profile:
- ENVEOLI1808008EN
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mechanical Durability:
- 1000000 cycles
- Bezel Material:
- chromium plated metal
- Type Of Keylock:
- key 458A
- Product Certifications:
- DNV || GL || BV || CSA || LROS (Lloyds register of shipping) || UL Listed
- Mercury Free:
- Yes
- Protective Treatment:
- TH
- Ambient Air Temperature For Storage:
- -40-70 °C
- Cad Overall Width:
- 29 mm
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting
- Device Presentation:
- basic element
- Operator Position Information:
- 3 positions +/- 45°
- Standards:
- EN/IEC 60947-5-5 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || UL 508 || GB 14048.5 || EN/IEC 60947-5-1
- Sustainable Offer Status:
- Green Premium product
- Shape Of Signaling Unit Head:
- round
- China Rohs Regulation:
- X
- Head Type:
- standard
