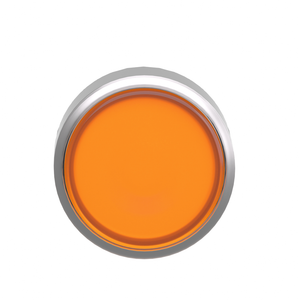

Schneider Electric ZB4BH33 Illuminated Push / Push H

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB4BH33 Illuminated Push / Push H

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BH33

UPC:

3389110890389

MPN:

Condition:

New

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Mercury Free:

Yes

Reach Free Of Svhc:

Yes

Circularity Profile:

ENVEOLI1808008EN

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Electrical Shock Protection Class:

class I IEC 60536

Standards:

IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-1 || UL 508 || IEC 60947-5-1 || IEC 60947-5-5 || JIS C8201-1

Cad Overall Height:

29 mm

Environmental Disclosure:

ENVPEP1808008EN

Warranty:

18 months

Device Short Name:

ZB4

Sustainable Offer Status:

Green Premium product

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ip Degree Of Protection:

IP69 || IP69K || IP67 IEC 60529

Ik Degree Of Protection:

IK05 IEC 50102

Electrical Composition Code:

M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED

Mechanical Durability:

500000 cycles

Device Presentation:

basic element

China Rohs Regulation:

X

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Type Of Operator:

push-push

Overvoltage Category:

class I IEC 60536

Net Weight:

0.026 kg

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Cad Overall Depth:

33 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Cad Overall Width:

29 mm

Mounting Diameter:

22 mm

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Operator Profile:

green projecting, unmarked

Bezel Material:

chromium plated metal

Sale Per Indivisible Quantity:

1

Product Or Component Type:

head for illuminated push-button

Ambient Air Temperature For Storage:

-40-70 °C

Rohs Exemption Information:

Yes

Product Certifications:

DNV || GL || UL Listed || LROS (Lloyds register of shipping) || CSA || BV

Toxic Heavy Metal Free:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Shape Of Signaling Unit Head:

round

Head Type:

standard

Ambient Air Temperature For Operation:

-40-70 °C

Protective Treatment:

TH

Product Compatibility:

universal LED

Range Of Product:

Harmony XB4
