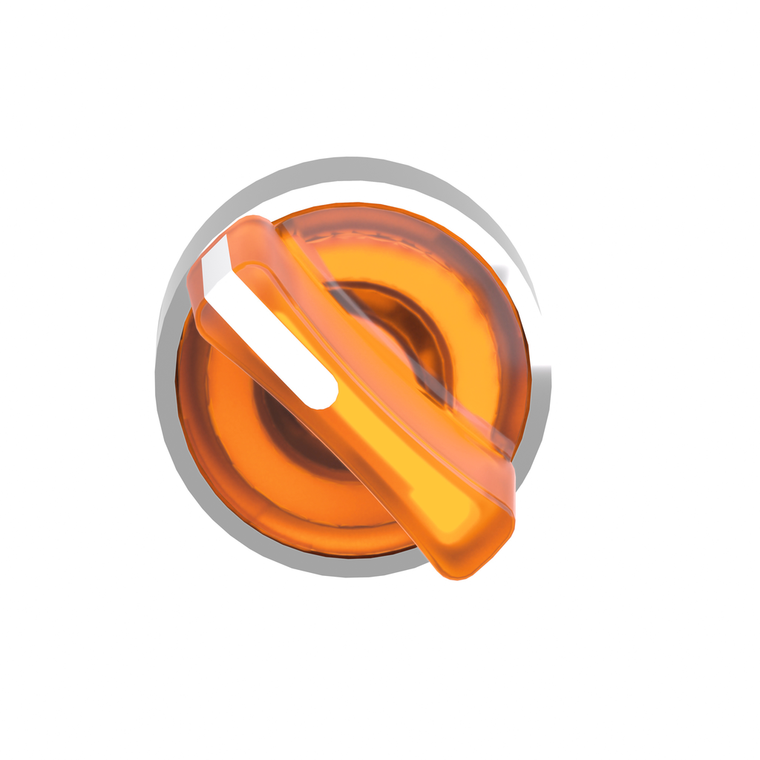

Schneider Electric ZB4BK1253 Selector Ill. Pushbotton

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB4BK1253 Selector Ill. Pushbotton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BK1253

UPC:

3389110890457

MPN:

Condition:

New

Cad Overall Width:

29 mm

Mounting Diameter:

22 mm

Net Weight:

0.036 kg

Protective Treatment:

TH

Overvoltage Category:

class I IEC 60536

Product Certifications:

UL Listed || GL || DNV || LROS (Lloyds register of shipping) || BV || CSA

Operator Position Information:

2 positions 90°

Sustainable Offer Status:

Green Premium product

Device Short Name:

ZB4

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Standards:

CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || JIS C8201-1

Type Of Operator:

stay put

Mechanical Durability:

1000000 cycles

Ambient Air Temperature For Storage:

-40-70 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Head Type:

standard

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Device Presentation:

basic element

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Rohs Exemption Information:

Yes

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Circularity Profile:

ENVEOLI1808008EN

China Rohs Regulation:

X

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Cad Overall Depth:

43 mm

Warranty:

18 months

Operator Profile:

orange standard handle

Product Or Component Type:

head for illuminated selector switch

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Range Of Product:

Harmony XB4

Product Compatibility:

universal LED

Sale Per Indivisible Quantity:

1

Reach Free Of Svhc:

Yes

Electrical Composition Code:

M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || M4 4 single and double front mounting integral LED

Toxic Heavy Metal Free:

Yes

Bezel Material:

chromium plated metal

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ik Degree Of Protection:

IK04 IEC 50102

Shape Of Signaling Unit Head:

round

Environmental Disclosure:

ENVPEP1808008EN

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Ambient Air Temperature For Operation:

-40-70 °C

Cad Overall Height:

29 mm

Mercury Free:

Yes
