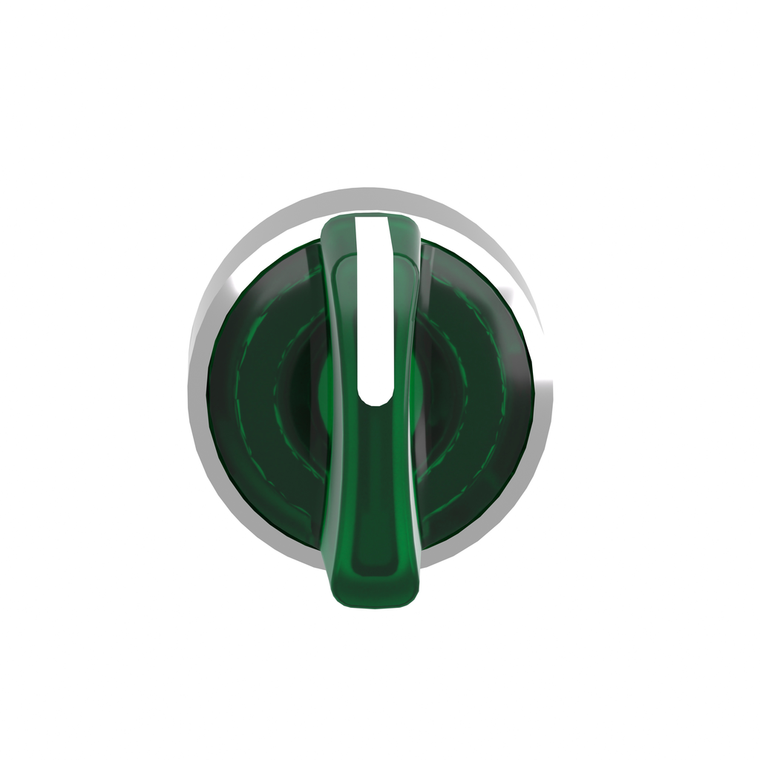

Schneider Electric ZB4BK1333 Selector Ill. Pushbotton
Schneider Electric
$35.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, illuminated green selector switch head for universal LED with standard handle has 3 positions, operates with stay-put mechanism. This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Cad Overall Height:
- 29 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
- Environmental Disclosure:
- ENVPEP1808008EN
- Mercury Free:
- Yes
- Sale Per Indivisible Quantity:
- 1
- Sustainable Offer Status:
- Green Premium product
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Mechanical Durability:
- 500000 cycles
- Rohs Exemption Information:
- Yes
- Cad Overall Width:
- 29 mm
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Product Or Component Type:
- head for illuminated selector switch
- Shape Of Signaling Unit Head:
- round
- Toxic Heavy Metal Free:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- Operator Profile:
- green standard handle
- Net Weight:
- 0.036 kg
- Overvoltage Category:
- class I IEC 60536
- Mounting Diameter:
- 22 mm
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Product Compatibility:
- universal LED
- Protective Treatment:
- TH
- Bezel Material:
- chromium plated metal
- China Rohs Regulation:
- X
- Head Type:
- standard
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Device Short Name:
- ZB4
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Ambient Air Temperature For Storage:
- -40-70 °C
- Operator Position Information:
- 3 positions +/- 45°
- Standards:
- JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-1 || JIS C8201-1
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Reach Free Of Svhc:
- Yes
- Type Of Operator:
- stay put
- Ik Degree Of Protection:
- IK04 IEC 50102
- Range Of Product:
- Harmony XB4
- Warranty:
- 18 months
- Product Certifications:
- BV || DNV || GL || LROS (Lloyds register of shipping) || UL Listed || CSA
- Cad Overall Depth:
- 43 mm
- Circularity Profile:
- ENVEOLI1808008EN
- Device Presentation:
- basic element
