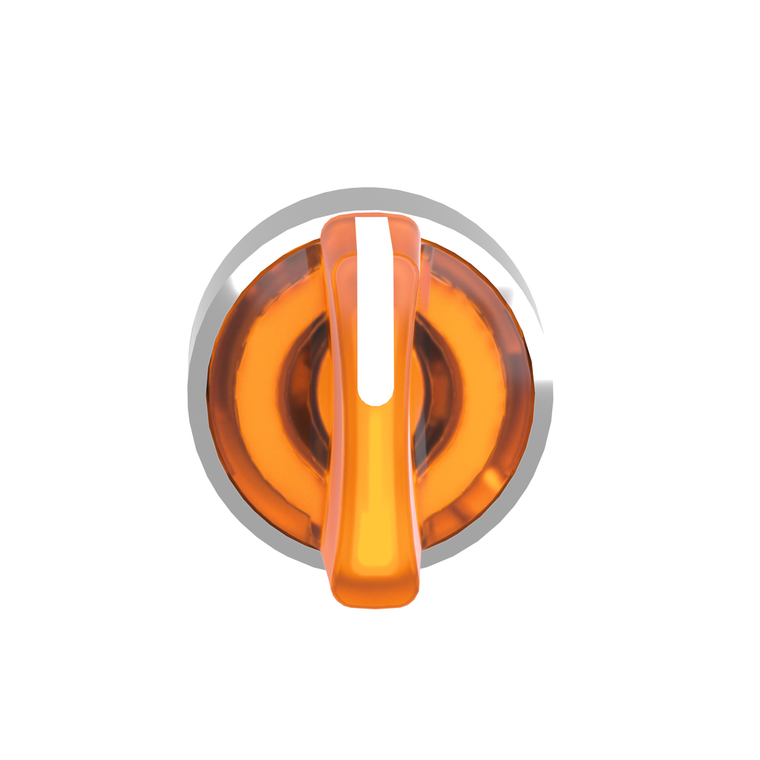

Schneider Electric ZB4BK1353 Selector Ill. Pushbotton
Schneider Electric
$25.73
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, illuminated orange selector switch head for universal LED with standard handle has 3 positions, operates with stay-put mechanism. This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Net Weight:
- 0.036 kg
- Reach Free Of Svhc:
- Yes
- Mechanical Durability:
- 500000 cycles
- Operator Position Information:
- 3 positions +/- 45°
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Mounting Diameter:
- 22 mm
- Head Type:
- standard
- Ik Degree Of Protection:
- IK04 IEC 50102
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Shape Of Signaling Unit Head:
- round
- Mercury Free:
- Yes
- Cad Overall Width:
- 29 mm
- Type Of Operator:
- stay put
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Cad Overall Height:
- 29 mm
- Ambient Air Temperature For Operation:
- -40-70 °C
- Device Short Name:
- ZB4
- Cad Overall Depth:
- 43 mm
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Storage:
- -40-70 °C
- Operator Profile:
- orange standard handle
- Sale Per Indivisible Quantity:
- 1
- Environmental Disclosure:
- ENVPEP1808008EN
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- China Rohs Regulation:
- X
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Warranty:
- 18 months
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Standards:
- JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || JIS C8201-1
- Product Certifications:
- LROS (Lloyds register of shipping) || DNV || GL || CSA || UL Listed || BV
- Toxic Heavy Metal Free:
- Yes
- Range Of Product:
- Harmony XB4
- Circularity Profile:
- ENVEOLI1808008EN
- Overvoltage Category:
- class I IEC 60536
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Or Component Type:
- head for illuminated selector switch
- Protective Treatment:
- TH
- Device Presentation:
- basic element
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Rohs Exemption Information:
- Yes
- Bezel Material:
- chromium plated metal
- Product Compatibility:
- universal LED
