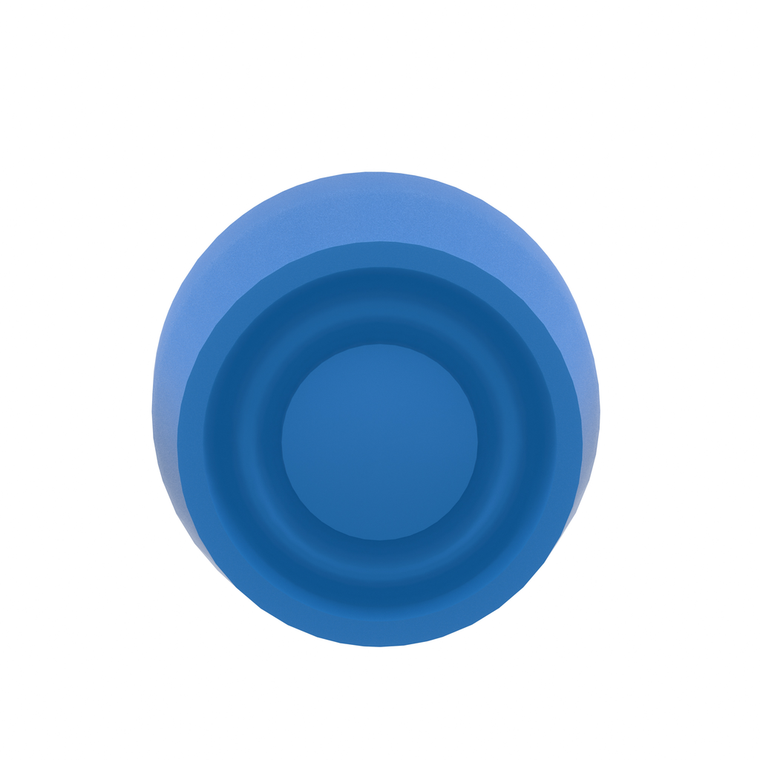

Schneider Electric ZB4BP6S Pushbutton Operator Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB4BP6S Pushbutton Operator Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BP6S

UPC:

3389110999341

MPN:

Condition:

New

Overvoltage Category:

class I IEC 60536

Circularity Profile:

ENVEOLI1808008EN

Device Presentation:

basic element

Rohs Exemption Information:

Yes

Operator Profile:

blue flush, unmarked

Range Of Product:

Harmony XB4

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Product Certifications:

GL || DNV || BV || LROS (Lloyds register of shipping) || UL Listed || CSA

China Rohs Regulation:

X

Sustainable Offer Status:

Green Premium product

Ambient Air Temperature For Operation:

-40-70 °C

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Electrical Composition Code:

C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting

Mercury Free:

Yes

Bezel Material:

chromium plated metal

Cad Overall Height:

30 mm

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Product Compatibility:

legend holder

Reach Free Of Svhc:

Yes

Warranty:

18 months

Standards:

EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-1

Ambient Air Temperature For Storage:

-40-70 °C

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ik Degree Of Protection:

IK06 IEC 50102

Mounting Diameter:

22 mm

Shape Of Signaling Unit Head:

round

Device Short Name:

ZB4

Cad Overall Depth:

33 mm

Product Or Component Type:

head for non-illuminated push-button

Toxic Heavy Metal Free:

Yes

Cad Overall Width:

30 mm

Head Type:

standard

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environmental Disclosure:

ENVPEP1808008EN

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Mechanical Durability:

10000000 cycles

Operator Additional Information:

coloured boot

Sale Per Indivisible Quantity:

1

Type Of Operator:

spring return

Protective Treatment:

TH

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6
