Schneider Electric ZB4BR316 Mushroomm Push But Head
Schneider Electric
$75.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB4BR316 Mushroomm Push But Head

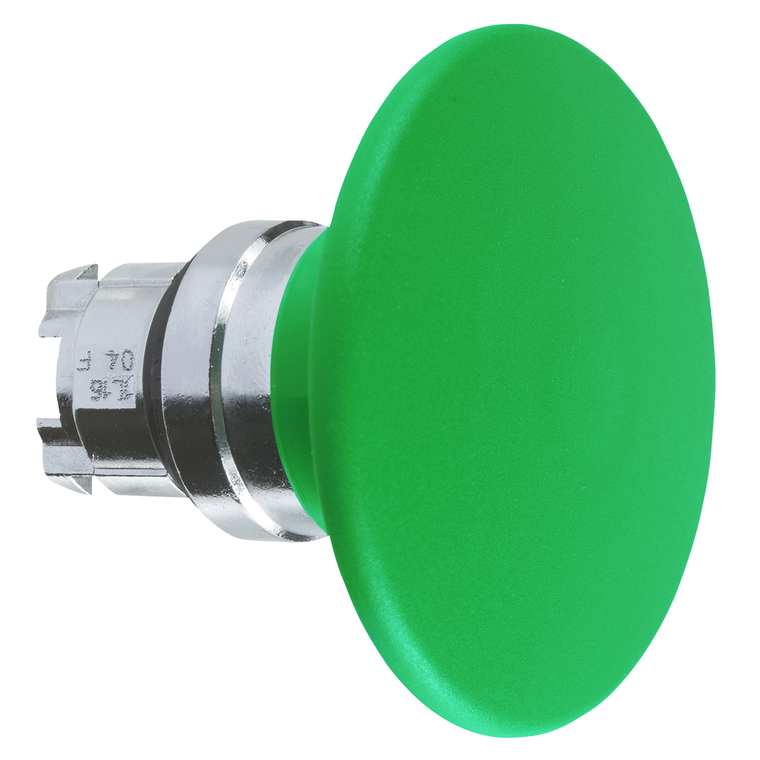

This Harmony XB4, 60mm mushroom green button head operates with a spring return / impulse mechanism. This 60mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 60mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Its highly ergonomic mushroom push button shape makes it ideal for use in area where operator wear thick gloves or where users have impaired movements.
- Operator Profile:
- green mushroom à 60 mm, unmarked
- Mounting Diameter:
- 22 mm
- Rohs Exemption Information:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mechanical Durability:
- 5000000 cycles
- Bezel Material:
- chromium plated metal
- Range Of Product:
- Harmony XB4
- Type Of Operator:
- spring return
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || JIS C8201-5-1 || UL 508 || JIS C8201-1
- Ik Degree Of Protection:
- IK03 IEC 50102
- China Rohs Regulation:
- X
- Reach Free Of Svhc:
- Yes
- Device Short Name:
- ZB4
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Shape Of Signaling Unit Head:
- hemispherical
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP1808008EN
- Head Type:
- standard
- Warranty:
- 18 months
- Product Or Component Type:
- head for non-illuminated push-button
- Product Certifications:
- GL || BV || CSA || LROS (Lloyds register of shipping) || UL Listed || DNV
- Sale Per Indivisible Quantity:
- 1
- Cad Overall Depth:
- 45 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Protective Treatment:
- TH
- Cad Overall Width:
- 60 mm
- Device Presentation:
- basic element
- Overvoltage Category:
- class I IEC 60536
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mercury Free:
- Yes
- Electrical Composition Code:
- C11 3 single front mounting || C15 1 single front mounting || C3 6 single front mounting || C4 6 single and double front mounting
- Cad Overall Height:
- 60 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Circularity Profile:
- ENVEOLI1808008EN
