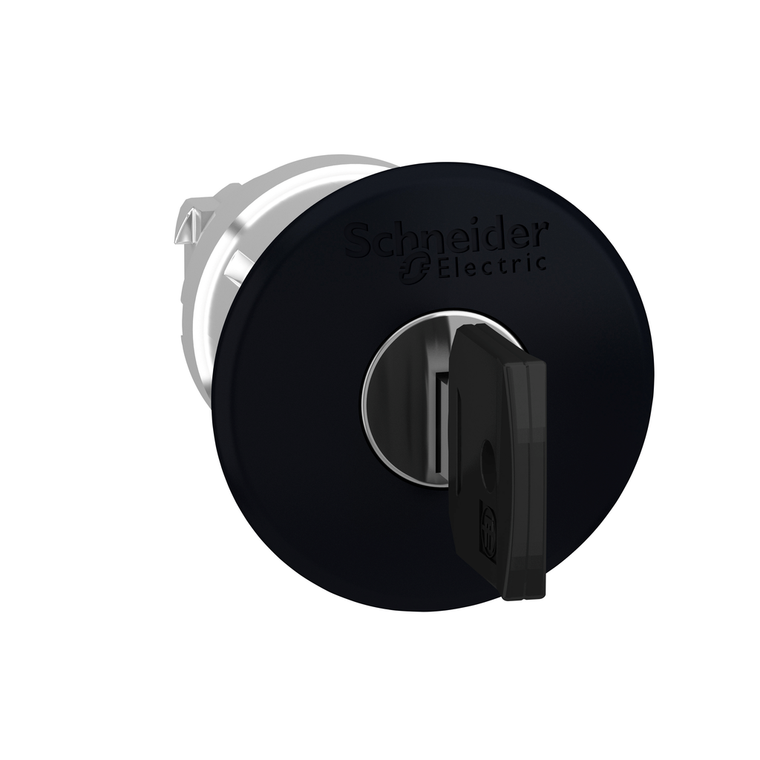

Schneider Electric ZB4BS12 Emergency Stop Op. Head
Schneider Electric
$112.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB4BS12 Emergency Stop Op. Head
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, 40mm mushroom black button head operates with latched key release (key no.455) mechanism. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Secure machine and system operation with a key, only available to authorized operators. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Its highly ergonomic mushroom push button shape makes it ideal for use in area where operator wear thick gloves or where users have impaired movements.
- Ambient Air Temperature For Storage:
- -40-70 °C
- Range Of Product:
- Harmony XB4
- Ambient Air Temperature For Operation:
- -40-70 °C
- Shape Of Signaling Unit Head:
- round
- Overvoltage Category:
- class I IEC 60536
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Cad Overall Depth:
- 79 mm
- Circularity Profile:
- ENVEOLI2201004EN
- Standards:
- UL 508 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-1
- Net Weight:
- 0.07 kg
- Cad Overall Height:
- 40 mm
- Product Certifications:
- UL Listed || DNV || GL || CSA || BV || LROS (Lloyds register of shipping)
- Sale Per Indivisible Quantity:
- 1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ik Degree Of Protection:
- IK03 IEC 50102
- Type Of Operator:
- latching
- Product Or Component Type:
- head for non-illuminated push-button
- China Rohs Regulation:
- X
- Environmental Disclosure:
- ENVPEP2201004EN
- Head Type:
- standard
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Electrical Composition Code:
- C11 3 single front mounting || C15 1 single front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C10 4 single and double front mounting
- Device Short Name:
- ZB4
- Mounting Diameter:
- 22 mm
- Type Of Keylock:
- key 455
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Key Withdrawal Position:
- center
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sustainable Offer Status:
- Green Premium product
- Mechanical Durability:
- 500000 cycles
- Device Presentation:
- basic element
- Reset:
- key release
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Bezel Material:
- chromium plated metal
- Cad Overall Width:
- 40 mm
- Warranty:
- 18 months
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Rohs Exemption Information:
- Yes
- Operator Profile:
- black mushroom à 40 mm, unmarked
- Protective Treatment:
- TH
