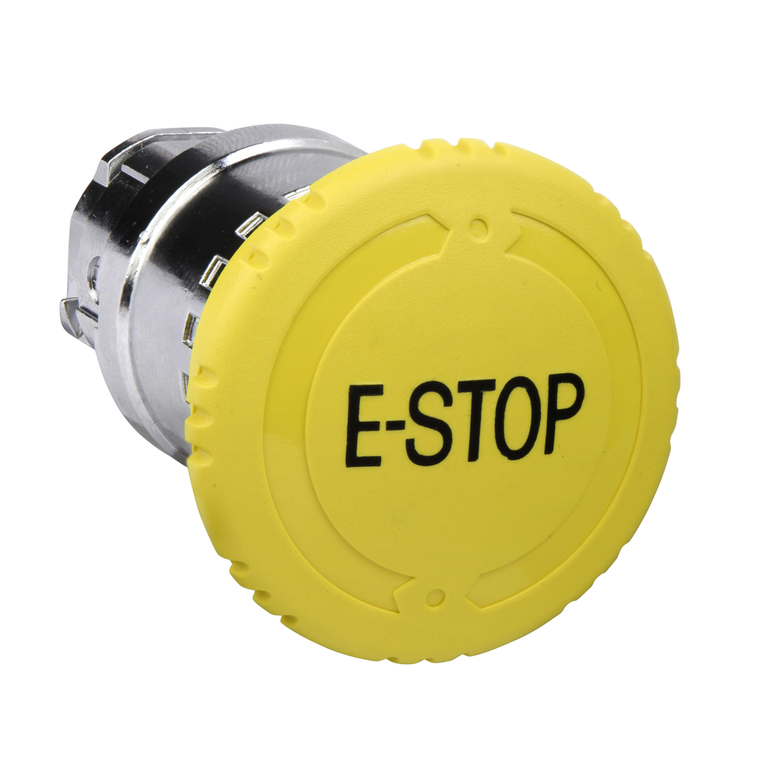

Schneider Electric ZB4BS5540 Yellow Mushroom Head, Marked E-Stop Pack of 42
SKU:
ZB4BS5540
UPC:
3.60648E+12
MPN:
Condition:
New
Range Of Product:
Harmony XB4
Warranty:
18 months
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Sale Per Indivisible Quantity:
1
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Net Weight:
0.07 kg
Product Or Component Type:
head for non-illuminated push-button
Device Short Name:
ZB4
Shape Of Signaling Unit Head:
round
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Mounting Diameter:
22 mm
Protective Treatment:
TH
Product Certifications:
UL Listed || DNV || CSA || BV || GL || LROS (Lloyds register of shipping)
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Type Of Operator:
latching
Environmental Disclosure:
ENVPEP2201004EN
China Rohs Regulation:
X
Mechanical Durability:
300000 cycles
Mercury Free:
Yes
Ambient Air Temperature For Storage:
-40-70 °C
Rohs Exemption Information:
Yes
Bezel Material:
chromium plated metal
Cad Overall Height:
40 mm
Standards:
EN/IEC 60947-1 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || JIS C8201-1
Reach Free Of Svhc:
Yes
Reset:
turn to release
Ambient Air Temperature For Operation:
-40-70 °C
Circularity Profile:
ENVEOLI2201004EN
Overvoltage Category:
class I IEC 60536
Head Type:
standard
Cad Overall Width:
40 mm
Cad Overall Depth:
57 mm
Electrical Composition Code:
C11 3 single front mounting || C15 1 single front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C10 4 single and double front mounting
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
