Schneider Electric ZB4BS72 Emergency Stop Op. Head

Schneider Electric ZB4BS72 Emergency Stop Op. Head

Schneider Electric
SKU:
ZB4BS72
|
UPC:
3389110888799
Availability:
Contact us to confirm availability and lead times.
$112.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

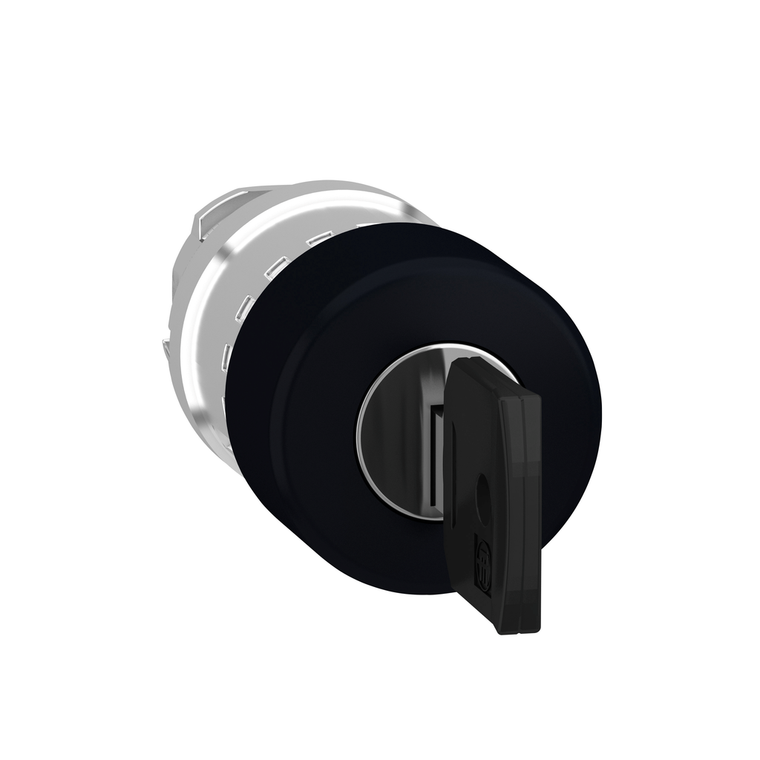

This Harmony XB4, 30mm mushroom black button head operates with latched key release (key no.455) mechanism. This 30mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 30mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Secure machine and system operation with a key, only available to authorized operators. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Its highly ergonomic mushroom push button shape makes it ideal for use in area where operator wear thick gloves or where users have impaired movements.
Additional Information
Head Type:
standard
Cad Overall Height:
30 mm
Product Or Component Type:
head for non-illuminated push-button
Operator Profile:
black mushroom Ø 30 mm, unmarked
Warranty:
18 months
Net Weight:
0.066 kg
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Environmental Disclosure:
ENVPEP2201004EN
Sustainable Offer Status:
Green Premium product
Mounting Diameter:
22 mm
Reset:
key release
Standards:
EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || JIS C8201-5-1 || UL 508 || JIS C8201-1
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Key Withdrawal Position:
center
Device Short Name:
ZB4
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ik Degree Of Protection:
IK03 IEC 50102
Range Of Product:
Harmony XB4
China Rohs Regulation:
X
Ambient Air Temperature For Storage:
-40-70 °C
Type Of Keylock:
key 455
Cad Overall Width:
30 mm
Protective Treatment:
TH
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Operation:
-40-70 °C
Bezel Material:
chromium plated metal
Device Presentation:
basic element
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Overvoltage Category:
class I IEC 60536
Cad Overall Depth:
79 mm
Type Of Operator:
latching
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Sale Per Indivisible Quantity:
1
Mechanical Durability:
500000 cycles
Electrical Composition Code:
C11 3 single front mounting || C15 1 single front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C10 4 single and double front mounting
Shape Of Signaling Unit Head:
round
Circularity Profile:
ENVEOLI2201004EN
Product Certifications:
GL || UL Listed || DNV || CSA || BV || LROS (Lloyds register of shipping)
