Schneider Electric ZB4BS834 Emergency Stop Op. Head
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

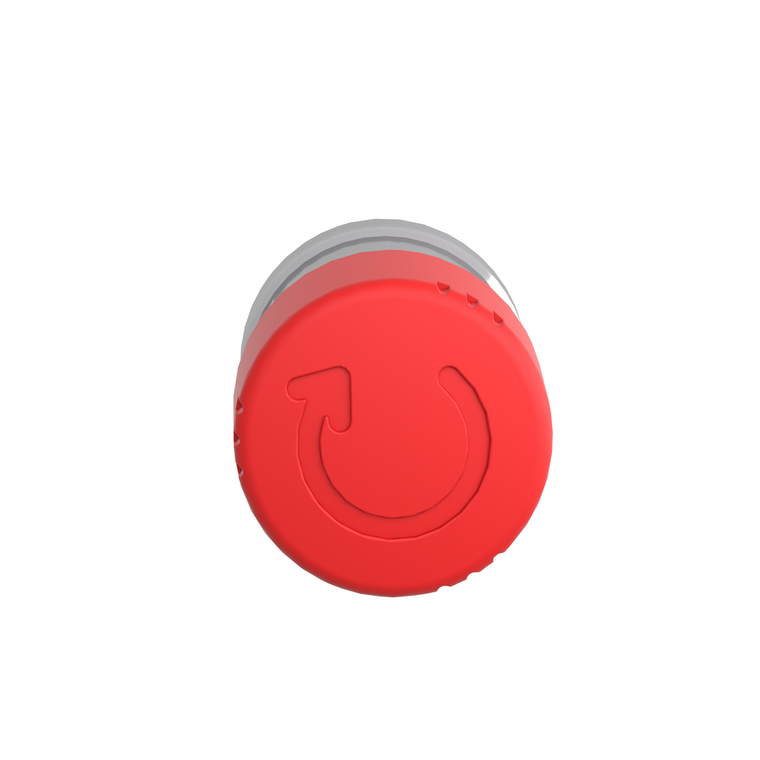

This Harmony XB4, emergency stop / shutdown 30mm mushroom red button head operates with a latched turn to release mechanism. This emergency stop / shutdown button head also called EMS (Emergency Machine Stop) and EMO (Emergency Off) provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off pushbuttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 30mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Protective Treatment:
- TH
- Environmental Disclosure:
- ENVPEP2201004EN
- Cad Overall Height:
- 30 mm
- Toxic Heavy Metal Free:
- Yes
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X || NEMA 4 || NEMA 12
- Warranty:
- 18 months
- Shape Of Signaling Unit Head:
- round
- Operator Profile:
- red mushroom à 30 mm, unmarked
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Mercury Free:
- Yes
- Cad Overall Depth:
- 57 mm
- Bezel Material:
- chromium plated metal
- Ambient Air Temperature For Storage:
- -40-70 °C
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Mechanical Durability:
- 300000 cycles
- Head Type:
- standard
- Ambient Air Temperature For Operation:
- -40-70 °C
- Device Short Name:
- ZB4
- China Rohs Regulation:
- X
- Mounting Diameter:
- 22 mm
- Type Of Operator:
- trigger action and mechanical latching
- Device Presentation:
- basic element
- Rohs Exemption Information:
- Yes
- Reach Free Of Svhc:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Standards:
- IEC 60204-1 || JIS C8201-5-1 || GB 14048.5 || IEC 60947-1 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-5-1 || ISO 13850 || IEC 60364-5-53 || UL 508 || IEC 60947-5-5 || JIS C8201-1
- Circularity Profile:
- ENVEOLI2201004EN
- Reset:
- turn to release
- Electrical Composition Code:
- C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || C10 4 single and double front mounting
- Electrical Shock Protection Class:
- class I IEC 61140
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69 || IP69K
- Sale Per Indivisible Quantity:
- 1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Cad Overall Width:
- 30 mm
- Net Weight:
- 0.068 kg
- Ik Degree Of Protection:
- IK06 IEC 50102
- Product Or Component Type:
- head for emergency switching off push-button
- Product Certifications:
- LROS (Lloyds register of shipping) || GL || CSA || BV || DNV || UL Listed
- Sustainable Offer Status:
- Green Premium product
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Range Of Product:
- Harmony XB4
