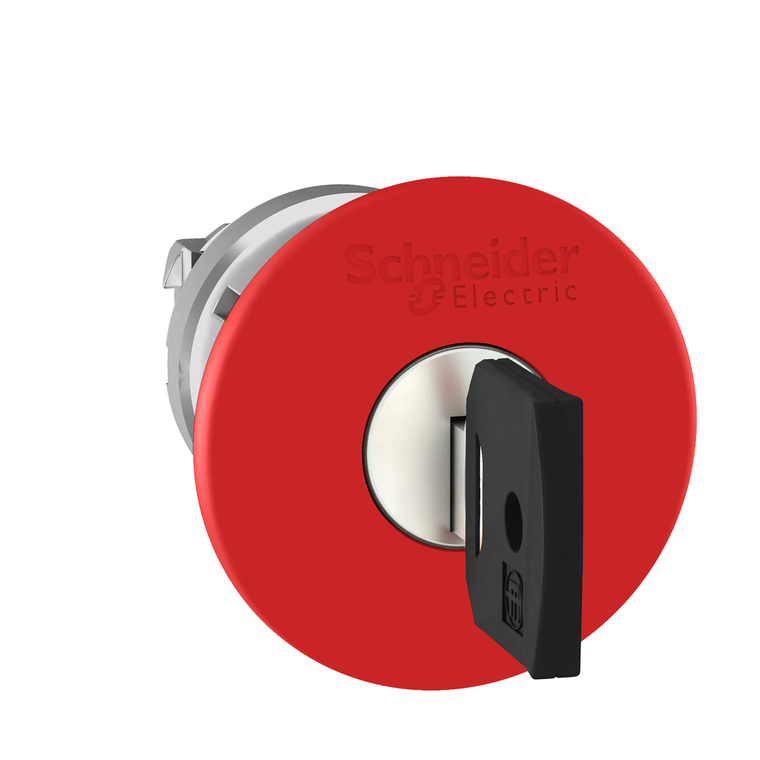

Schneider Electric ZB4BS94412 Emergency Stop Op.Head
Schneider Electric
$151.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB4BS94412 Emergency Stop Op.Head
This Harmony XB4, emergency stop / shutdown 40mm mushroom red button head operates with a latched key release (key no.421E) mechanism. This emergency stop / shutdown button head also called EMS (Emergency Machine Stop) and EMO (Emergency Off) provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off pushbuttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Secure machine and system operation with a key, only available to authorized operators. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Environmental Disclosure:
- ENVPEP2201004EN
- Ambient Air Temperature For Storage:
- -40-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ik Degree Of Protection:
- IK03 IEC 50102
- Warranty:
- 18 months
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Operator Profile:
- red mushroom à 40 mm, unmarked
- Range Of Product:
- Harmony XB4
- Protective Treatment:
- TH
- Shape Of Signaling Unit Head:
- round
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Type Of Operator:
- trigger action and mechanical latching
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- China Rohs Regulation:
- X
- Bezel Material:
- chromium plated metal
- Sale Per Indivisible Quantity:
- 1
- Cad Overall Width:
- 40 mm
- Net Weight:
- 0.098 kg
- Rohs Exemption Information:
- Yes
- Standards:
- IEC 60947-5-1 || GB 14048.5 || ISO 13850 || IEC 60947-5-5 || IEC 60364-5-53 || IEC 60947-5-4 || IEC 60947-1 || UL 508 || IEC 60204-1 || CSA C22.2 No 14 || JIS C8201-5-1 || JIS C8201-1
- Ambient Air Temperature For Operation:
- -40-70 °C
- Product Certifications:
- LROS (Lloyds register of shipping) || CSA || UL Listed || DNV || BV || GL
- Mercury Free:
- Yes
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X || NEMA 4 || NEMA 12
- Reset:
- key release
- Cad Overall Height:
- 40 mm
- Key Withdrawal Position:
- center
- Mounting Diameter:
- 22 mm
- Circularity Profile:
- ENVEOLI2201004EN
- Cad Overall Depth:
- 79 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Device Presentation:
- basic element
- Sustainable Offer Status:
- Green Premium product
- Head Type:
- standard
- Electrical Shock Protection Class:
- class I IEC 61140
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Mechanical Durability:
- 300000 cycles
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Electrical Composition Code:
- C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || C10 4 single and double front mounting
- Type Of Keylock:
- key 421E
- Device Short Name:
- ZB4
- Product Or Component Type:
- head for emergency switching off push-button
