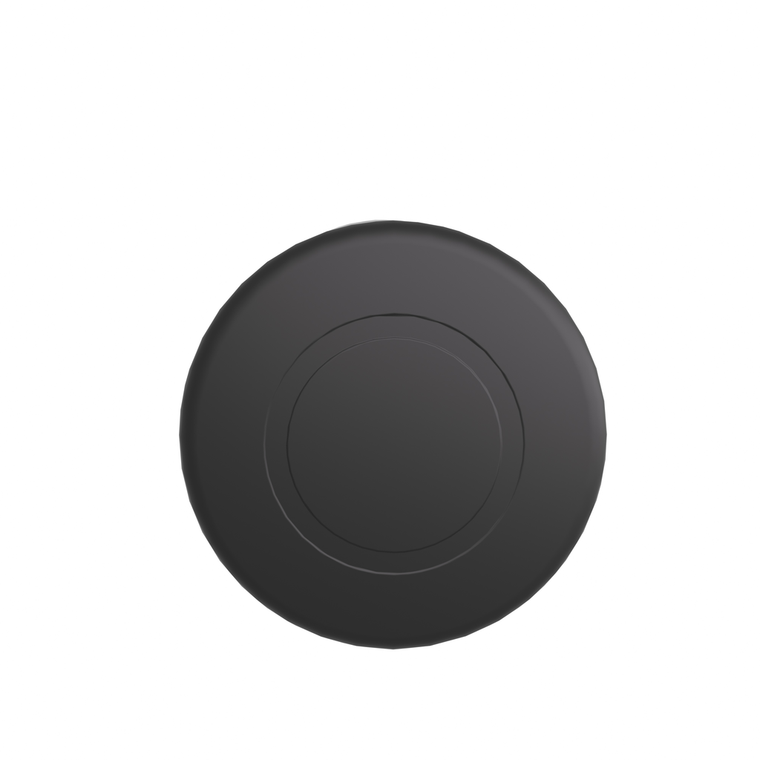

Schneider Electric ZB4BT2 Black Mushroom Latching Head Push-Pull 4

Schneider Electric ZB4BT2 Black Mushroom Latching Head Push-Pull 4

Schneider Electric
SKU:
ZB4BT2
|
UPC:
3389110888638
Availability:
Contact us to confirm availability and lead times.
$40.40
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XB4, 40mm mushroom black button head operates with latched push-pull mechanism. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Its highly ergonomic mushroom push button shape makes it ideal for use in area where operator wear thick gloves or where users have impaired movements.
Additional Information
Cad Overall Depth:
56 mm
Type Of Operator:
latching
Device Presentation:
basic element
Cad Overall Width:
40 mm
Mechanical Durability:
500000 cycles
Electrical Composition Code:
C11 3 single front mounting || C15 1 single front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C10 4 single and double front mounting
Rohs Exemption Information:
Yes
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Ambient Air Temperature For Operation:
-40-70 °C
Circularity Profile:
ENVEOLI2201004EN
Ik Degree Of Protection:
IK06 IEC 50102
Environmental Disclosure:
ENVPEP2201004EN
Net Weight:
0.077 kg
Protective Treatment:
TH
Standards:
EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1
Warranty:
18 months
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Or Component Type:
head for non-illuminated push-button
Toxic Heavy Metal Free:
Yes
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Head Type:
standard
Cad Overall Height:
40 mm
Ambient Air Temperature For Storage:
-40-70 °C
Device Short Name:
ZB4
Overvoltage Category:
class I IEC 60536
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Operator Profile:
black mushroom Ø 40 mm, unmarked
China Rohs Regulation:
X
Range Of Product:
Harmony XB4
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Offer Status:
Green Premium product
Bezel Material:
chromium plated metal
Mounting Diameter:
22 mm
Mercury Free:
Yes
Sale Per Indivisible Quantity:
1
Product Certifications:
GL || LROS (Lloyds register of shipping) || UL Listed || DNV || CSA || BV
Reset:
push-pull
Reach Free Of Svhc:
Yes
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Shape Of Signaling Unit Head:
round
