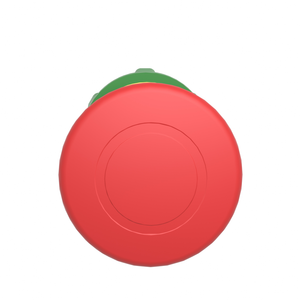

Schneider Electric ZB4BT84TQ Red Mushroom Latching Head Zb4Bt84 Sold Pack of 100
Schneider Electric
$4,970.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This emergency stop / shutdown button head, is easily combined with contact blocks and installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments It is sold by 100 units High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
- Electrical Composition Code:
- C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || C10 4 single and double front mounting
- China Rohs Regulation:
- X
- Warranty:
- 18 months
- Ambient Air Temperature For Storage:
- -40-70 °C
- Product Certifications:
- GL || LROS (Lloyds register of shipping) || DNV || UL Listed || CSA || BV
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X || NEMA 4 || NEMA 12
- Product Or Component Type:
- head for emergency switching off push-button
- Net Weight:
- 0.078 kg
- Sale Per Indivisible Quantity:
- 100
- Ambient Air Temperature For Operation:
- -40-70 °C
- Type Of Operator:
- trigger action and mechanical latching
- Ik Degree Of Protection:
- IK06 IEC 50102
- Bezel Material:
- chromium plated metal
- Toxic Heavy Metal Free:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Mechanical Durability:
- 300000 cycles
- Reach Free Of Svhc:
- Yes
- Standards:
- IEC 60947-5-4 || ISO 13850 || UL 508 || IEC 60364-5-53 || IEC 60947-1 || IEC 60947-5-5 || CSA C22.2 No 14 || IEC 60947-5-1 || GB 14048.5 || IEC 60204-1 || JIS C8201-5-1 || JIS C8201-1
- Reset:
- push-pull
- Rohs Exemption Information:
- Yes
- Mounting Diameter:
- 22 mm
- Range Of Product:
- Harmony XB4
- Shape Of Signaling Unit Head:
- round
- Head Type:
- standard
- Sustainable Offer Status:
- Green Premium product
- Protective Treatment:
- TH
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Cad Overall Height:
- 40 mm
- Circularity Profile:
- ENVEOLI2201004EN
- Device Short Name:
- ZB4
- Cad Overall Depth:
- 56 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Cad Overall Width:
- 40 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Operator Profile:
- red mushroom à 40 mm, unmarked
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Electrical Shock Protection Class:
- class I IEC 61140
- Environmental Disclosure:
- ENVPEP2201004EN
- Datasheet:
- View
