Schneider Electric ZB4BV003 Pilot Light Head

(No reviews yet) Write a Review
SKU:
ZB4BV003
UPC:
3389110889611
Condition:
New
Cad Overall Width:
29 mm
Shape Of Signaling Unit Head:
round
Reach Free Of Svhc:
Yes
Important Message:
A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Sale Per Indivisible Quantity:
1
Ambient Air Temperature For Storage:
-40-70 °C
Standards:
EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || JIS C8201-1
Device Short Name:
ZB4
Bezel Material:
chromium plated metal
Range Of Product:
Harmony XB4
Cad Overall Height:
29 mm
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Cap/Operator Or Lens Colour:
5 colours choice
Mercury Free:
Yes
Cad Overall Depth:
30 mm
Ik Degree Of Protection:
IK06 IEC 50102
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Electrical Composition Code:
P1 front mounting integral LED || P2 front mounting integral LED and transformer
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Head Type:
standard
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Device Presentation:
basic element
Circularity Profile:
ENVEOLI2308026EN
Warranty:
18 months
Operator Additional Information:
with plain lens
Mounting Diameter:
22 mm
Toxic Heavy Metal Free:
Yes
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Rohs Exemption Information:
Yes
Net Weight:
0.026 kg
Product Compatibility:
universal LED
Ambient Air Temperature For Operation:
-40-70 °C
China Rohs Regulation:
X
Protective Treatment:
TH
Product Or Component Type:
head for pilot light
Overvoltage Category:
class I IEC 60536
Sustainable Offer Status:
Green Premium product
Environmental Disclosure:
ENVPEP2308026EN
Catalog:
View
Datasheet:
View
  • Schneider Electric ZB4BV003 Pilot Light Head
  • Schneider Electric ZB4BV003 Pilot Light Head
  • Schneider Electric ZB4BV003 Pilot Light Head
$7.60

Description

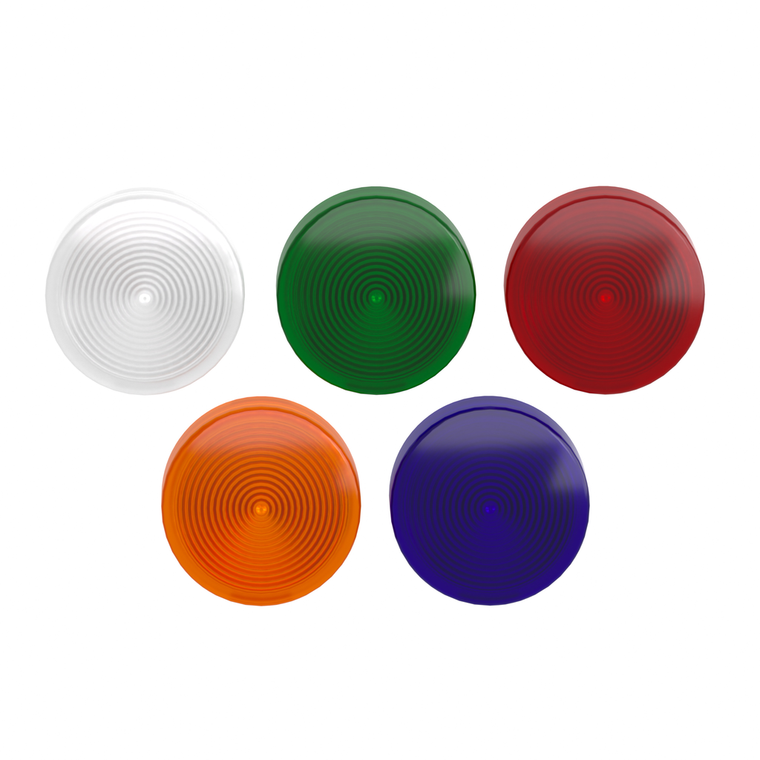

This Harmony XB4, plain lens head for pilot light with universal LED provides 5 colors of len: white, green, red, orange, blue. This heads set for universal LED pilot light comes with 5 different colors for multi-purposes use of machine operation. It is designed to last without maintenance for a bright indication of process and is clearly distinguishable visually at a distance thanks to clear colors of lens, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
