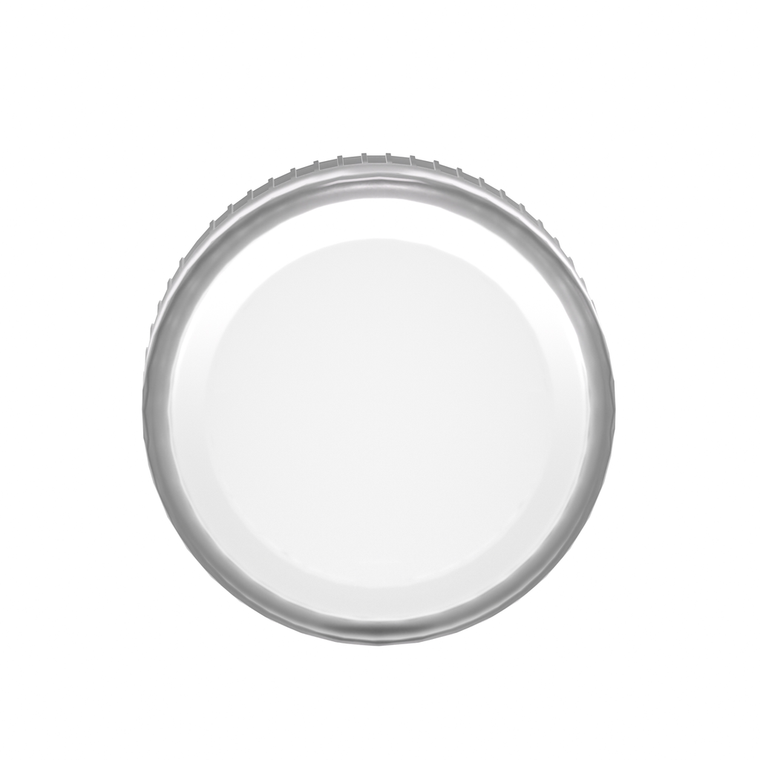

Schneider Electric ZB4BV01 Pilot Light Head

Schneider Electric ZB4BV01 Pilot Light Head

Schneider Electric
SKU:
ZB4BV01
|
UPC:
3389110889499
Availability:
Contact us to confirm availability and lead times.
$7.60
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XB4, plain lens white head for pilot light is supplied with BA9s base. This head with BA9s base pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Additional Information
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Cap/Operator Or Lens Colour:
white
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Cad Overall Depth:
31 mm
Device Short Name:
ZB4
Electrical Composition Code:
P3 front mounting BA 9s || P4 front mounting BA 9s and transformer
Mounting Diameter:
22 mm
Product Or Component Type:
head for pilot light
Sale Per Indivisible Quantity:
1
Net Weight:
0.027 kg
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Circularity Profile:
ENVEOLI2308026EN
Shape Of Signaling Unit Head:
round
Environmental Disclosure:
ENVPEP2308026EN
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Toxic Heavy Metal Free:
Yes
Mercury Free:
Yes
Sustainable Offer Status:
Green Premium product
Cad Overall Height:
29 mm
Overvoltage Category:
class I IEC 60536
Operator Additional Information:
with plain lens
Rohs Exemption Information:
Yes
Cad Overall Width:
29 mm
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Device Presentation:
basic element
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Head Type:
standard
Ambient Air Temperature For Storage:
-40-70 °C
Protective Treatment:
TH
Ambient Air Temperature For Operation:
-40-55 °C
Bezel Material:
chromium plated metal
Standards:
IEC 60947-5-1 || IEC 60947-1 || JIS C8201-5-1 || UL 508 || IEC 60947-5-4 || IEC 60947-5-5 || CSA C22.2 No 14 || JIS C8201-1
China Rohs Regulation:
X
Reach Free Of Svhc:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Ik Degree Of Protection:
IK06 IEC 50102
Product Compatibility:
BA 9s
Warranty:
18 months
Range Of Product:
Harmony XB4
