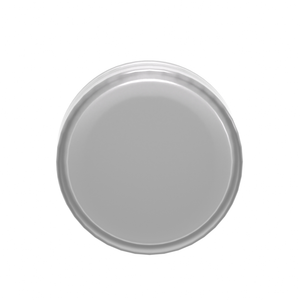

Schneider Electric ZB4BV013S Pilot Light Head
Schneider Electric
$7.60
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB4BV013S Pilot Light Head
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

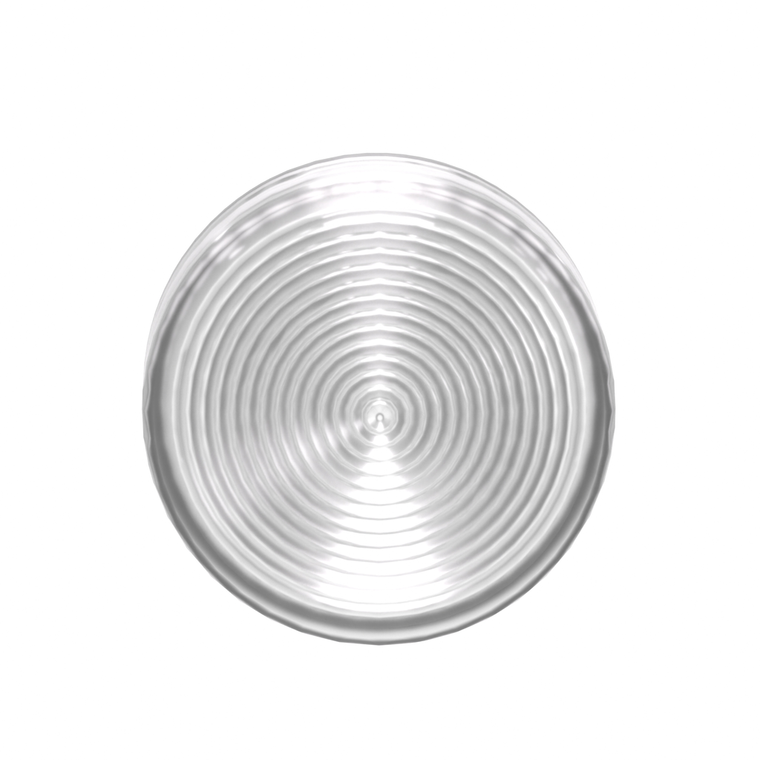

This Harmony XB4, grooved lens head for pilot light with universal LED is white. This head for universal LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Reach Free Of Svhc:
- Yes
- Mercury Free:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ambient Air Temperature For Storage:
- -40-70 °C
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Head Type:
- standard
- Environmental Disclosure:
- ENVPEP2308026EN
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Electrical Composition Code:
- P1 front mounting integral LED || P2 front mounting integral LED and transformer
- Operator Additional Information:
- with grooved lens
- Overvoltage Category:
- class I IEC 60536
- Sustainable Offer Status:
- Green Premium product
- Net Weight:
- 0.026 kg
- Product Or Component Type:
- head for pilot light
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Product Compatibility:
- universal LED
- Circularity Profile:
- ENVEOLI2308026EN
- China Rohs Regulation:
- X
- Rohs Exemption Information:
- Yes
- Device Presentation:
- basic element
- Standards:
- CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
- Sale Per Indivisible Quantity:
- 1
- Cap/Operator Or Lens Colour:
- white
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Cad Overall Width:
- 29 mm
- Cad Overall Depth:
- 30 mm
- Toxic Heavy Metal Free:
- Yes
- Cad Overall Height:
- 29 mm
- Mounting Diameter:
- 22 mm
- Bezel Material:
- chromium plated metal
- Device Short Name:
- ZB4
- Ik Degree Of Protection:
- IK06 IEC 50102
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Protective Treatment:
- TH
- Range Of Product:
- Harmony XB4
- Ambient Air Temperature For Operation:
- -40-70 °C
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Environmental Characteristic:
- high ambient lighting environment
- Shape Of Signaling Unit Head:
- round
