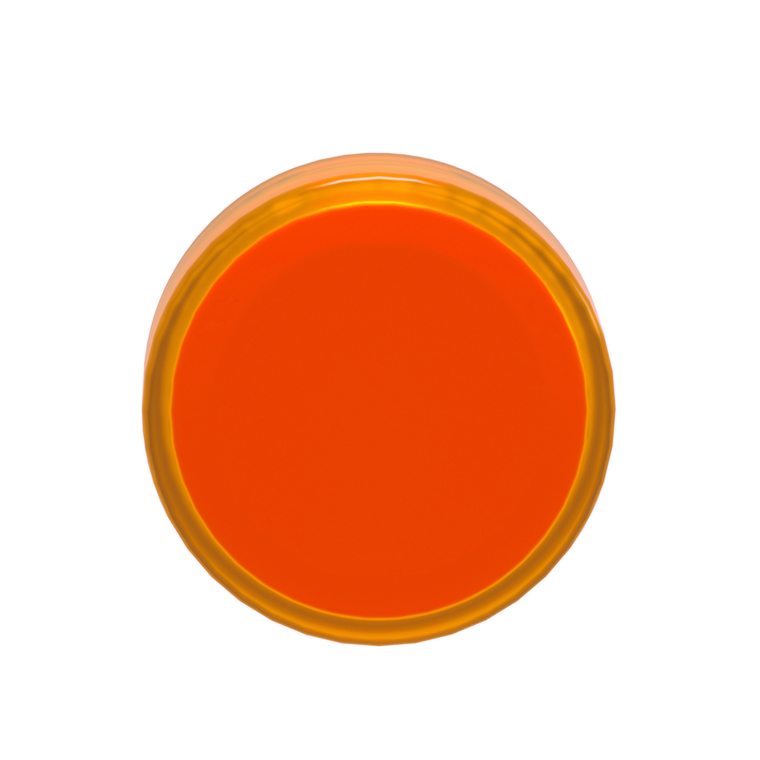

Schneider Electric ZB4BV053 Pilot Light Head
Schneider Electric
$5.59
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, plain lens head for pilot light with universal LED is orange. This head for universal LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
- Cad Overall Height:
- 29 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Reach Free Of Svhc:
- Yes
- Product Or Component Type:
- head for pilot light
- Shape Of Signaling Unit Head:
- round
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Warranty:
- 18 months
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Device Short Name:
- ZB4
- Net Weight:
- 0.026 kg
- Product Compatibility:
- universal LED
- Sale Per Indivisible Quantity:
- 1
- Sustainable Offer Status:
- Green Premium product
- Cad Overall Depth:
- 30 mm
- Mounting Diameter:
- 22 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Head Type:
- standard
- Standards:
- EN/IEC 60947-1 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || UL 508 || JIS C8201-1
- Protective Treatment:
- TH
- Electrical Composition Code:
- P1 front mounting integral LED || P2 front mounting integral LED and transformer
- Bezel Material:
- chromium plated metal
- Mercury Free:
- Yes
- Environmental Disclosure:
- ENVPEP2308026EN
- Ik Degree Of Protection:
- IK06 IEC 50102
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- ENVEOLI2308026EN
- Ambient Air Temperature For Operation:
- -40-70 °C
- Toxic Heavy Metal Free:
- Yes
- Overvoltage Category:
- class I IEC 60536
- Operator Additional Information:
- with plain lens
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Range Of Product:
- Harmony XB4
- China Rohs Regulation:
- X
- Cap/Operator Or Lens Colour:
- orange
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Cad Overall Width:
- 29 mm
- Device Presentation:
- basic element
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
