Schneider Electric

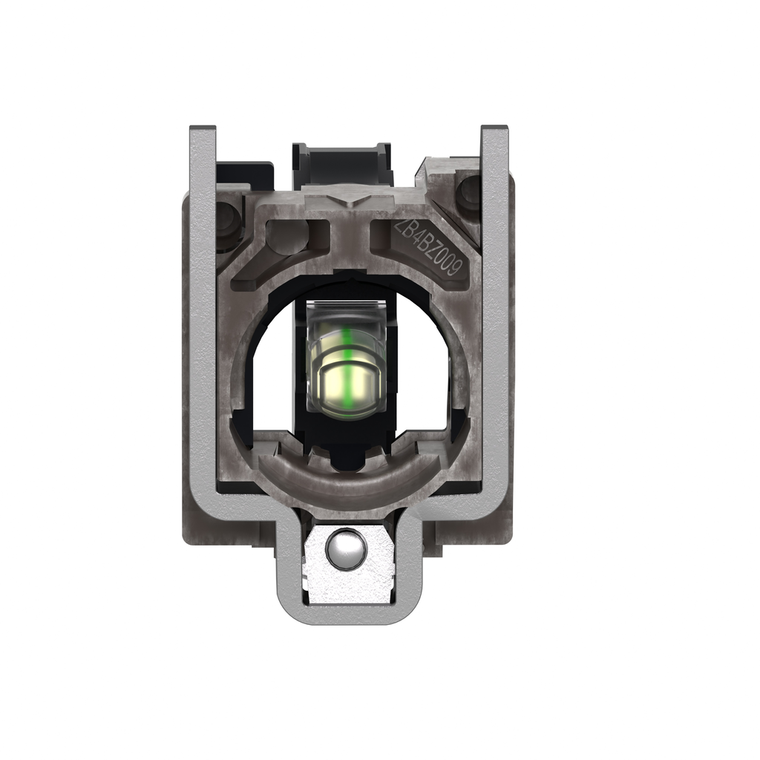

Schneider Electric ZB4BV18G1 120 V Led Pilot Light Bod

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB4BV18G1 120 V Led Pilot Light Bod

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BV18G1

UPC:

3389110215502

MPN:

Condition:

New

Light Source:

universal LED

Protective Treatment:

TH

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Product Certifications:

BV || DNV || GL || LROS (Lloyds register of shipping) || UL Listed || CSA

Net Weight:

0.054 kg

Circularity Profile:

ENVEOLI1808008EN

Ambient Air Temperature For Operation:

-40-70 °C

Bulb Base:

integral LED

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Device Short Name:

ZB4

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Product Or Component Type:

complete body/light block assembly

Current Consumption:

14 mA

Standards:

IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-5-1 || UL 508 || IEC 60947-5-5 || IEC 60947-5-4 || JIS C8201-1

Sustainable Offer Status:

Green Premium product

Cad Overall Height:

47 mm

Cad Overall Depth:

37 mm

Signalling Type:

flashing

Service Life:

100000 h at rated voltage and 25 °C

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Range Of Product:

Harmony XB4

Warranty:

18 months

Electromagnetic Emission:

class B IEC 55011

Mercury Free:

Yes

Environmental Disclosure:

ENVPEP1808008EN

Rohs Exemption Information:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end || screw clamp terminals, >= 1 x 0.22 mm² without cable end

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Fixing Collar Material:

zamak

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Light Source Colour:

white

China Rohs Regulation:

X

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Terminals Description Iso N°1:

(X1-X2)PL

Cad Overall Width:

30 mm

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Sale Per Indivisible Quantity:

1

Electrical Shock Protection Class:

class I IEC 60536

Surge Withstand:

1 kV IEC 61000-4-5

Brochure:

View

Catalog:

View

Datasheet:

View
