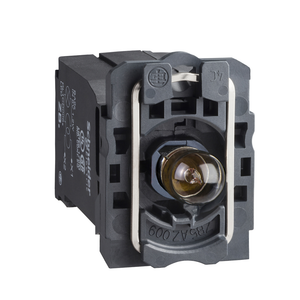

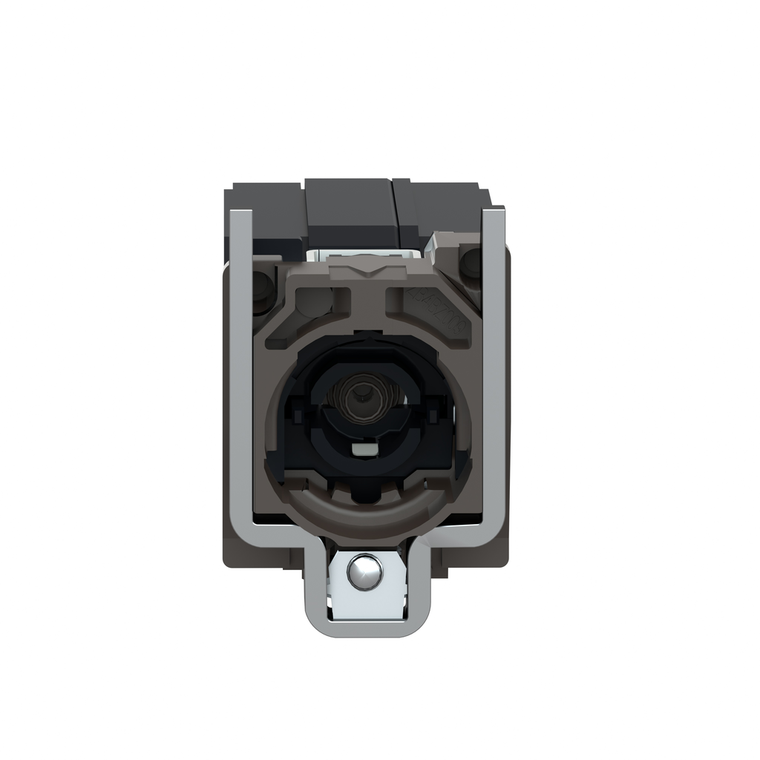

Schneider Electric ZB4BV4 230 V Transfo Pilot Light
This Harmony XB4, light block with body/fixing collar operates with BA9s base Integral LED. It has a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.
- Circularity Profile:
- ENVEOLI1808008EN
- Warranty:
- 18 months
- Sale Per Indivisible Quantity:
- 1
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Signalling Type:
- steady
- Ip Degree Of Protection:
- IP20
- Device Presentation:
- basic sub-assemblies
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end || screw clamp terminals, >= 1 x 0.22 mm² without cable end
- [Us] Rated Supply Voltage:
- 230...240 V AC 50/60 Hz
- Bulb Base:
- BA 9s
- Cad Overall Height:
- 47 mm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Cad Overall Width:
- 30 mm
- Light Source:
- incandescent
- Environmental Disclosure:
- ENVPEP1808008EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Range Of Product:
- Harmony XB4
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Light Block Supply:
- via integral transformer 1.2 VA 6 V
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Net Weight:
- 0.13 kg
- Terminals Description Iso N°1:
- (X1-X2)PL
- Device Short Name:
- ZB4
- Product Certifications:
- BV || CSA || GL || DNV || UL Listed || LROS (Lloyds register of shipping)
- Electrical Shock Protection Class:
- class I IEC 60536
- China Rohs Regulation:
- X
- Sustainable Offer Status:
- Green Premium product
- Mercury Free:
- Yes
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Electrical Composition Code:
- P4 || M9
- Cad Overall Depth:
- 60 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Protective Treatment:
- TH
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Standards:
- IEC 60947-1 || UL 508 || IEC 60947-5-5 || JIS C8201-5-1 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || JIS C8201-1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ambient Air Temperature For Operation:
- -40-55 °C
- Fixing Collar Material:
- zamak
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mounting Of Block:
- front mounting
- Product Or Component Type:
- complete body/light block assembly
- Rohs Exemption Information:
- Yes
