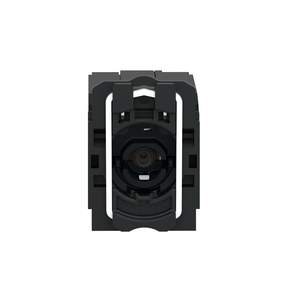

Schneider Electric ZB4BV8 480 V Transfo Pilot Light
Schneider Electric
$72.03
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, light block with body/fixing collar operates with BA9s base Integral LED. It has a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.
- Rohs Exemption Information:
- Yes
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Warranty:
- 18 months
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Range Of Product:
- Harmony XB4
- Device Short Name:
- ZB4
- Product Or Component Type:
- complete body/light block assembly
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- [Us] Rated Supply Voltage:
- 440...480 V AC 50/60 Hz
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Cad Overall Depth:
- 60 mm
- Net Weight:
- 0.128 kg
- Electrical Composition Code:
- P4 || M9
- Circularity Profile:
- ENVEOLI1808008EN
- Light Block Supply:
- via integral transformer 1.2 VA 6 V
- Device Presentation:
- basic sub-assemblies
- Light Source:
- incandescent
- Ambient Air Temperature For Operation:
- -40-55 °C
- Environmental Disclosure:
- ENVPEP1808008EN
- Terminals Description Iso N°1:
- (X1-X2)PL
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Cad Overall Height:
- 47 mm
- Standards:
- UL 508 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-5 || JIS C8201-1
- Protective Treatment:
- TH
- Sustainable Offer Status:
- Green Premium product
- Electrical Shock Protection Class:
- class I IEC 60536
- Ip Degree Of Protection:
- IP20
- Cad Overall Width:
- 30 mm
- China Rohs Regulation:
- X
- Sale Per Indivisible Quantity:
- 1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Bulb Base:
- BA 9s
- Fixing Collar Material:
- zamak
- Mounting Of Block:
- front mounting
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end || screw clamp terminals, >= 1 x 0.22 mm² without cable end
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Signalling Type:
- steady
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Product Certifications:
- UL Listed || LROS (Lloyds register of shipping) || GL || BV || CSA || DNV
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
