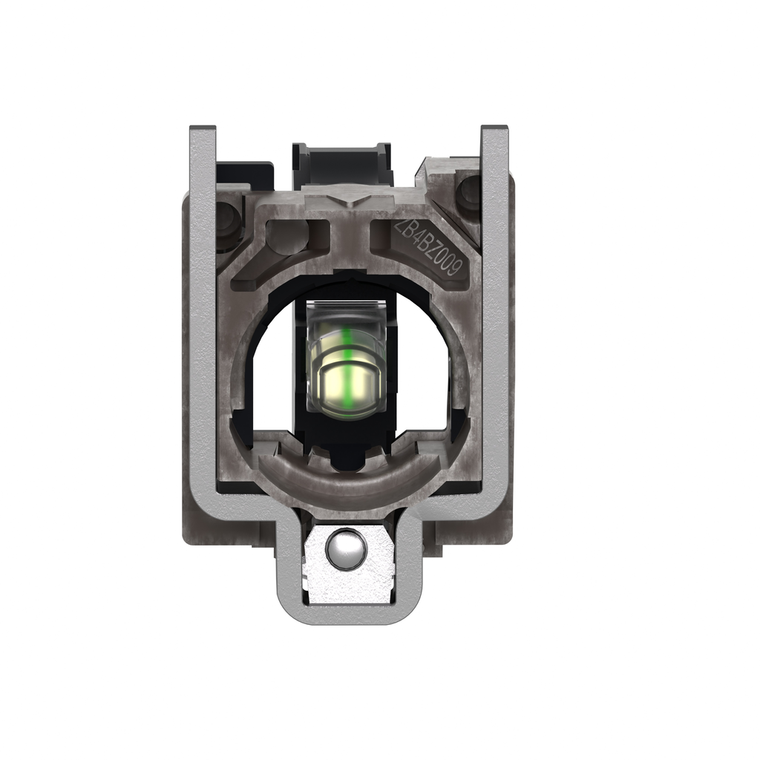

Schneider Electric ZB4BVB1 24 V Led Pilot Light Body

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB4BVB1 24 V Led Pilot Light Body

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BVB1

UPC:

3389110892383

MPN:

Condition:

New

Light Source Colour:

white

Sale Per Indivisible Quantity:

1

Signalling Type:

steady

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Rohs Exemption Information:

Yes

Warranty:

18 months

Product Certifications:

LROS (Lloyds register of shipping) || GL || UL Listed || DNV || CSA || BV

Light Source:

universal LED

Fixing Collar Material:

zamak

Surge Withstand:

1 kV IEC 61000-4-5

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Electrical Shock Protection Class:

class I IEC 60536

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Mercury Free:

Yes

Range Of Product:

Harmony XB4

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Ambient Air Temperature For Storage:

-40-70 °C

Bulb Base:

integral LED

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end || screw clamp terminals, >= 1 x 0.22 mm² without cable end

Protective Treatment:

TH

Electromagnetic Emission:

class B IEC 55011

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Current Consumption:

18 mA

Ambient Air Temperature For Operation:

-40-70 °C

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Net Weight:

0.054 kg

Circularity Profile:

ENVEOLI1808008EN

Device Short Name:

ZB4

Cad Overall Width:

30 mm

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Device Presentation:

basic sub-assemblies

Supply Voltage Limits:

19.2-30 V DC || 21.6-26.4 V AC

Cad Overall Depth:

37 mm

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Sustainable Offer Status:

Green Premium product

Cad Overall Height:

47 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6

Environmental Disclosure:

ENVPEP1808008EN

Standards:

IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || IEC 60947-5-5 || IEC 60947-5-4 || JIS C8201-1

China Rohs Regulation:

X

Service Life:

100000 h at rated voltage and 25 °C

Product Or Component Type:

complete body/light block assembly

Terminals Description Iso N°1:

(X1-X2)PL
