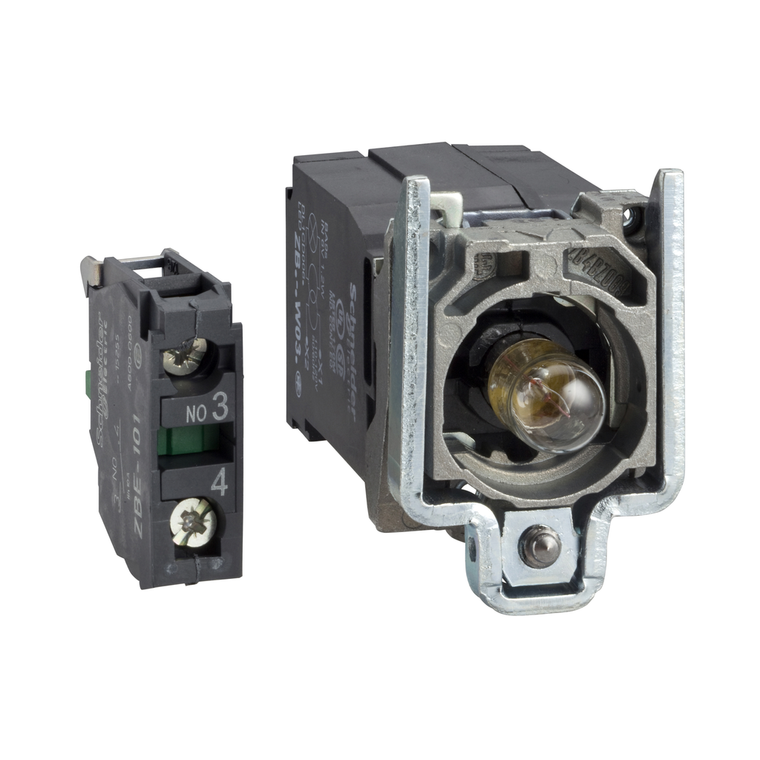

Schneider Electric ZB4BW031 Ill. Transformer P. B. Bo

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB4BW031 Ill. Transformer P. B. Bo

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BW031

UPC:

3.38911E+12

MPN:

Condition:

New

Signalling Type:

steady

Circularity Profile:

ENVEOLI1808008EN

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Operating Torque:

0.05 N.m NO changing electrical state

Cad Overall Width:

30 mm

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Standards:

IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-5 || IEC 60947-5-1 || JIS C8201-1

Net Weight:

0.141 kg

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

Terminals Description Iso N°1:

(13-14)NO

Ambient Air Temperature For Storage:

-40-70 °C

Contacts Type And Composition:

1 NO

Range Of Product:

Harmony XB4

Environmental Disclosure:

ENVPEP1808008EN

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Or Component Type:

complete body/contact assembly and light block

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Sustainable Offer Status:

Green Premium product

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Mercury Free:

Yes

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Protective Treatment:

TH

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Mechanical Durability:

5000000 cycles

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Fixing Collar Material:

zamak

Head Type:

standard

Cad Overall Height:

47 mm

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Light Block Supply:

via integral transformer 1.2 VA 6 V

Warranty:

18 months

Device Presentation:

basic sub-assemblies

Bulb Base:

BA 9s

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Contact Operation:

slow-break

Electrical Shock Protection Class:

class I IEC 60536

Contacts Material:

silver alloy (Ag/Ni)

Rohs Exemption Information:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

China Rohs Regulation:

X

Operating Force:

2.3 N NO changing electrical state

Product Certifications:

CSA || DNV || GL || BV || LROS (Lloyds register of shipping) || UL Listed

Device Short Name:

ZB4

Contacts Usage:

standard

Light Source:

incandescent

Ambient Air Temperature For Operation:

-40-70 °C

Operating Travel:

2.6 mm NO changing electrical state) || 4.3 mm total travel)

Positive Opening:

without

Sale Per Indivisible Quantity:

1
