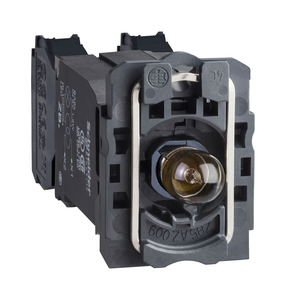

Schneider Electric ZB4BW051 Ill. Transformer P. B. Bo
SKU:
ZB4BW051
UPC:
3389110891867
MPN:
Condition:
New
Light Block Supply:
via integral transformer 1.2 VA 6 V
Sustainable Offer Status:
Green Premium product
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles
[Ith] Conventional Free Air Thermal Current:
10 A EN/IEC 60947-5-1
Circularity Profile:
ENVEOLI1808008EN
Bulb Base:
BA 9s
Rohs Exemption Information:
Yes
Ambient Air Temperature For Operation:
-40-70 °C
Contacts Usage:
standard
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
Cad Overall Width:
30 mm
Positive Opening:
without
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Environmental Disclosure:
ENVPEP1808008EN
Tightening Torque:
0.8-1.2 N.m EN 60947-1
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Contacts Material:
silver alloy (Ag/Ni)
Operating Force:
2.3 N NO changing electrical state
Device Short Name:
ZB4
Mechanical Durability:
5000000 cycles
Sale Per Indivisible Quantity:
1
Product Or Component Type:
complete body/contact assembly and light block
Terminals Description Iso N°1:
(13-14)NO
Short-Circuit Protection:
10 A cartridge fuse gG EN/IEC 60947-5-1
Electrical Shock Protection Class:
class I IEC 60536
China Rohs Regulation:
X
[Uimp] Rated Impulse Withstand Voltage:
6 kV EN 60947-1
Light Source:
incandescent
Fixing Collar Material:
zamak
Ambient Air Temperature For Storage:
-40-70 °C
Cad Overall Height:
47 mm
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury Free:
Yes
Head Type:
standard
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Contact Operation:
slow-break
Product Certifications:
UL Listed || LROS (Lloyds register of shipping) || DNV || CSA || GL || BV
Operating Torque:
0.05 N.m NO changing electrical state
Standards:
EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-1
[Ui] Rated Insulation Voltage:
600 V 3)EN 60947-1
[Us] Rated Supply Voltage:
400 V AC 50 Hz
Net Weight:
0.141 kg
Operating Travel:
2.6 mm NO changing electrical state) || 4.3 mm total travel)
