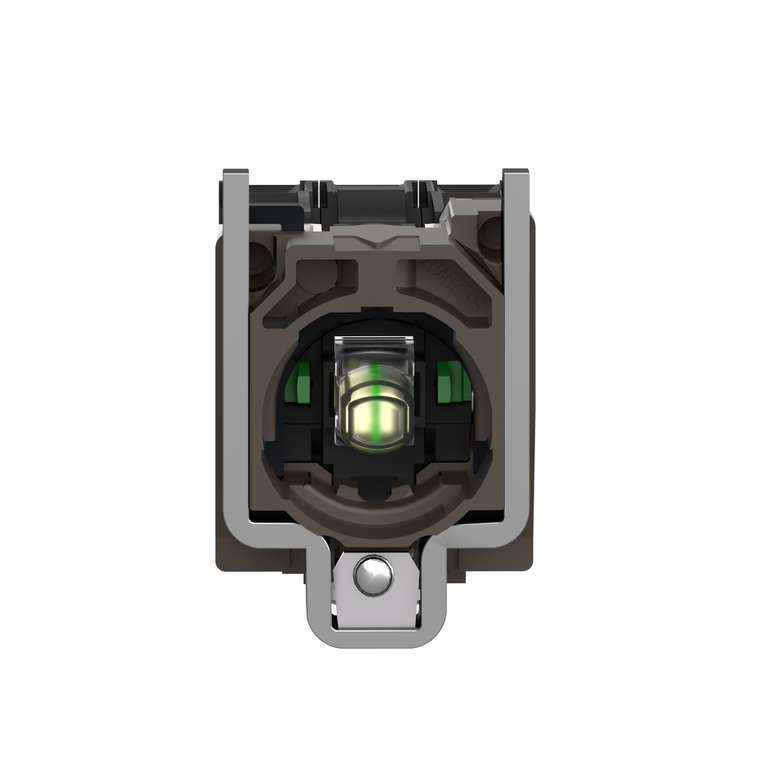

Schneider Electric ZB4BW0G13 120 V Led Illumi. P.B Bod

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB4BW0G13 120 V Led Illumi. P.B Bod

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BW0G13

UPC:

3389110893304

MPN:

Condition:

New

Contacts Usage:

standard

Light Source:

universal LED

Sustainable Offer Status:

Green Premium product

Operating Travel:

2.6 mm NO changing electrical state) || 4.3 mm total travel)

Service Life:

100000 h at rated voltage and 25 °C

Operating Torque:

0.05 N.m NO changing electrical state

Device Short Name:

ZB4

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Warranty:

18 months

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Terminals Description Iso N°1:

(13-14)NO

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

China Rohs Regulation:

X

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ambient Air Temperature For Operation:

-40-70 °C

Electromagnetic Emission:

class B IEC 55011

Light Block Supply:

direct

Positive Opening:

without

Ambient Air Temperature For Storage:

-40-70 °C

Cad Overall Height:

47 mm

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Protective Treatment:

TH

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Signalling Type:

steady

Contacts Material:

silver alloy (Ag/Ni)

Light Source Colour:

white

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Standards:

IEC 60947-5-5 || IEC 60947-5-4 || UL 508 || JIS C8201-5-1 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-1

Net Weight:

0.074 kg

Fixing Collar Material:

zamak

Current Consumption:

14 mA

Bulb Base:

integral LED

Electrical Shock Protection Class:

class I IEC 60536

Range Of Product:

Harmony XB4

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Head Type:

standard

Product Certifications:

BV || GL || DNV || LROS (Lloyds register of shipping) || UL Listed || CSA

Rohs Exemption Information:

Yes

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Device Presentation:

basic sub-assemblies

Sale Per Indivisible Quantity:

1

Operating Force:

2.3 N NO changing electrical state

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Contacts Type And Composition:

2 NO

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Mechanical Durability:

5000000 cycles

Contact Operation:

slow-break

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Cad Overall Width:

30 mm

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6

Environmental Disclosure:

ENVPEP1808008EN

Mercury Free:

Yes

Product Or Component Type:

complete body/contact assembly and light block

Circularity Profile:

ENVEOLI1808008EN

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Surge Withstand:

1 kV IEC 61000-4-5
