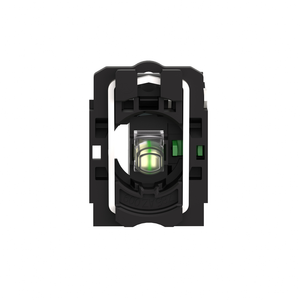

Schneider Electric ZB4BW0M15 230 V Led Illumi. P.B Bod

Schneider Electric ZB4BW0M15 230 V Led Illumi. P.B Bod

Schneider Electric
SKU:
ZB4BW0M15
|
UPC:
3389110893533
$90.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Harmony XB4, light block with body/fixing collar is white, operates with a universal LED. It has 1 x NO + 1 x NC contacts and a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.
Additional Information
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Ambient Air Temperature For Storage:
-40-70 °C
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mechanical Durability:
5000000 cycles
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Surge Withstand:
1 kV IEC 61000-4-5
Head Type:
standard
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3
Circularity Profile:
ENVEOLI1808008EN
Range Of Product:
Harmony XB4
Sustainable Offer Status:
Green Premium product
Contacts Usage:
standard
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
[Us] Rated Supply Voltage:
230...240 V AC 50/60 Hz
Signalling Type:
steady
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Supply Voltage Limits:
195-264 V AC
Protective Treatment:
TH
Resistance To Electrostatic Discharge:
6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6
Operating Force:
2 N NC changing electrical state || 2.3 N NO changing electrical state
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Device Presentation:
basic sub-assemblies
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Rohs Exemption Information:
Yes
Contact Operation:
slow-break
Current Consumption:
14 mA
Light Block Supply:
direct
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Light Source Colour:
white
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Product Certifications:
CSA || BV || DNV || UL Listed || GL || LROS (Lloyds register of shipping)
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Cad Overall Height:
47 mm
Operating Travel:
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Mercury Free:
Yes
Electromagnetic Emission:
class B IEC 55011
Service Life:
100000 h at rated voltage and 25 °C
Contacts Type And Composition:
1 NO + 1 NC
Resistance To Fast Transients:
2 kV IEC 61000-4-4
Positive Opening:
with IEC 60947-5-1 appendix K
Product Or Component Type:
complete body/contact assembly and light block
Standards:
CSA C22.2 No 14 || IEC 60947-5-5 || IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || UL 508 || JIS C8201-1
Operating Torque:
0.05 N.m NO changing electrical state
Ambient Air Temperature For Operation:
-40-70 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Net Weight:
0.074 kg
Terminals Description Iso N°1:
(11-12)NC
Light Source:
universal LED
China Rohs Regulation:
X
Electrical Shock Protection Class:
class I IEC 60536
Contacts Material:
silver alloy (Ag/Ni)
Device Short Name:
ZB4
Warranty:
18 months
Environmental Disclosure:
ENVPEP1808008EN
Cad Overall Width:
30 mm
Fixing Collar Material:
zamak
Bulb Base:
integral LED
Sale Per Indivisible Quantity:
1
Brochure:
View
Catalog:
View
Datasheet:
View
