Schneider Electric ZB4BW14 Illuminated Pushbutton He
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

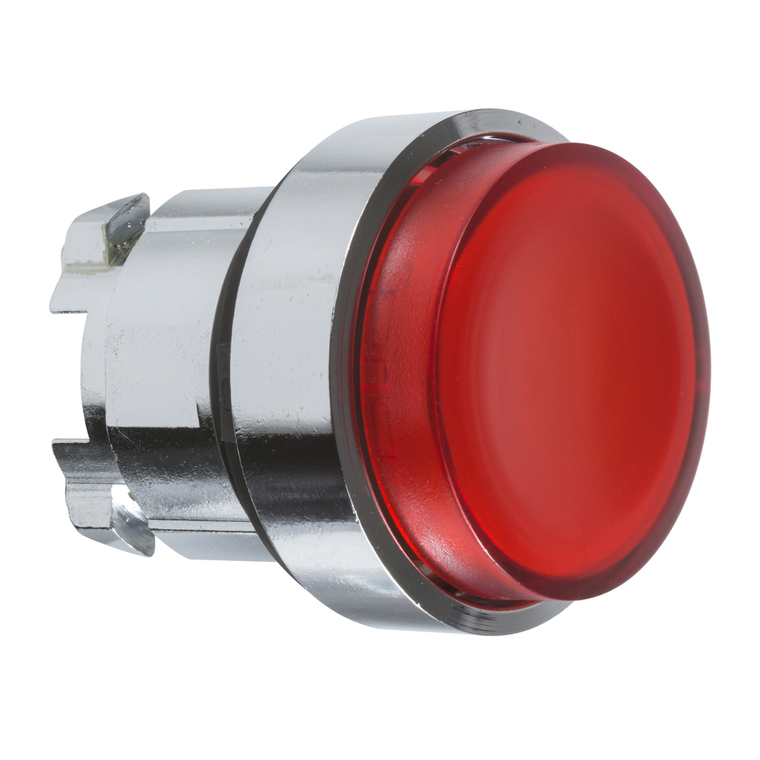

This Harmony XB4, plain lens illuminated projecting red button head operates with a spring return / impulse mechanism. This illuminated button head for BA9s Integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Standards:
- EN/IEC 60947-5-5 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1
- Device Presentation:
- basic sub-assemblies
- Product Certifications:
- GL || BV || UL Listed || LROS (Lloyds register of shipping) || CSA || DNV
- Bezel Material:
- chromium plated metal
- Device Short Name:
- ZB4
- Ambient Air Temperature For Operation:
- -40-55 °C
- Operator Additional Information:
- with plain lens
- Range Of Product:
- Harmony XB4
- Cad Overall Height:
- 29 mm
- Shape Of Signaling Unit Head:
- round
- Toxic Heavy Metal Free:
- Yes
- Mercury Free:
- Yes
- Warranty:
- 18 months
- Cad Overall Width:
- 29 mm
- Overvoltage Category:
- class I IEC 60536
- Ambient Air Temperature For Storage:
- -40-70 °C
- China Rohs Regulation:
- X
- Environmental Disclosure:
- ENVPEP1808008EN
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69 || IP69K
- Mounting Diameter:
- 22 mm
- Mechanical Durability:
- 10000000 cycles
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Circularity Profile:
- ENVEOLI1808008EN
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Compatibility:
- BA 9s
- Type Of Operator:
- spring return
- Net Weight:
- 0.028 kg
- Sale Per Indivisible Quantity:
- 1
- Operator Profile:
- red projecting, unmarked
- Ik Degree Of Protection:
- IK06 EN 50102
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Rohs Exemption Information:
- Yes
- Head Type:
- standard
- Protective Treatment:
- TH
- Cad Overall Depth:
- 32 mm
- Sustainable Offer Status:
- Green Premium product
- Electrical Composition Code:
- M7 6 single front mounting BA 9s || M8 6 single and double front mounting BA 9s || M9 2 single front mounting BA 9s and transformer
- Reach Free Of Svhc:
- Yes
- Product Or Component Type:
- head for illuminated push-button
