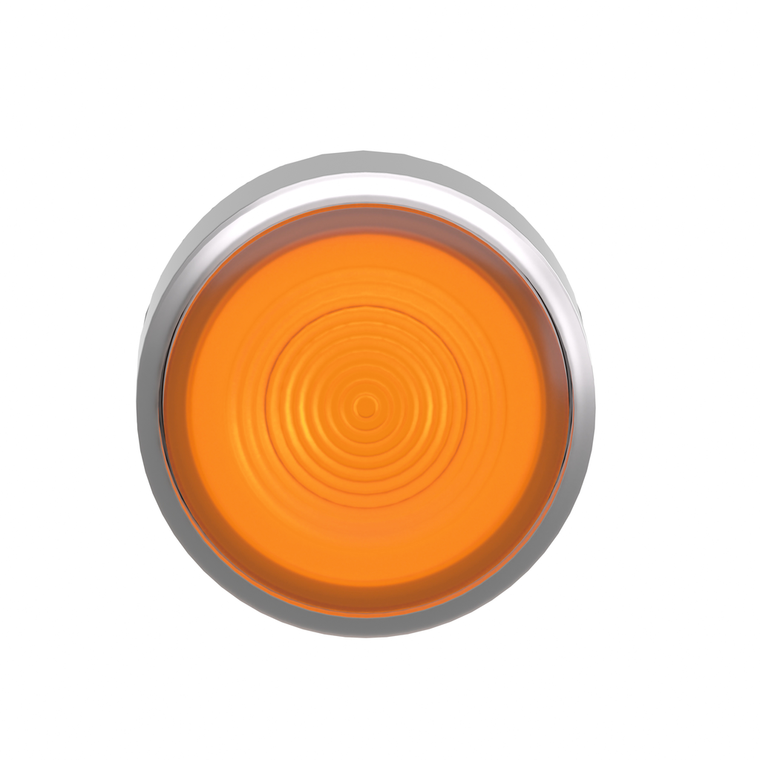

Schneider Electric ZB4BW353S Striated Lens Ill. P.B He
Schneider Electric
$13.67
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, grooved lens illuminated flush orange button head for universal LED operates with a spring return / impulse mechanism. This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
- Device Short Name:
- ZB4
- Environmental Disclosure:
- ENVPEP1808008EN
- Product Or Component Type:
- head for illuminated push-button
- Sustainable Offer Status:
- Green Premium product
- Operator Profile:
- orange flush, unmarked
- Range Of Product:
- Harmony XB4
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Circularity Profile:
- ENVEOLI1808008EN
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Height:
- 29 mm
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- China Rohs Regulation:
- X
- Reach Free Of Svhc:
- Yes
- Product Compatibility:
- universal LED
- Net Weight:
- 0.026 kg
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Shape Of Signaling Unit Head:
- round
- Device Presentation:
- basic sub-assemblies
- Bezel Material:
- chromium plated metal
- Protective Treatment:
- TH
- Warranty:
- 18 months
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Cad Overall Width:
- 29 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Mounting Diameter:
- 22 mm
- Operator Additional Information:
- with grooved lens
- Sale Per Indivisible Quantity:
- 1
- Mechanical Durability:
- 10000000 cycles
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Environmental Characteristic:
- high ambient lighting environment
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Depth:
- 30 mm
- Product Certifications:
- LROS (Lloyds register of shipping) || UL Listed || CSA || DNV || BV || GL
- Toxic Heavy Metal Free:
- Yes
- Ik Degree Of Protection:
- IK06 IEC 62262
- Ambient Air Temperature For Storage:
- -40-70 °C
- Head Type:
- standard
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Type Of Operator:
- spring return
- Standards:
- IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-5-5 || CSA C22.2 No 14 || JIS C8201-1
- Mercury Free:
- Yes
- Overvoltage Category:
- class I IEC 60536
