Schneider Electric ZB4BW413 Illuminated Mushroom Head Spring Return
Schneider Electric
$29.40
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB4BW413 Illuminated Mushroom Head Spring Return

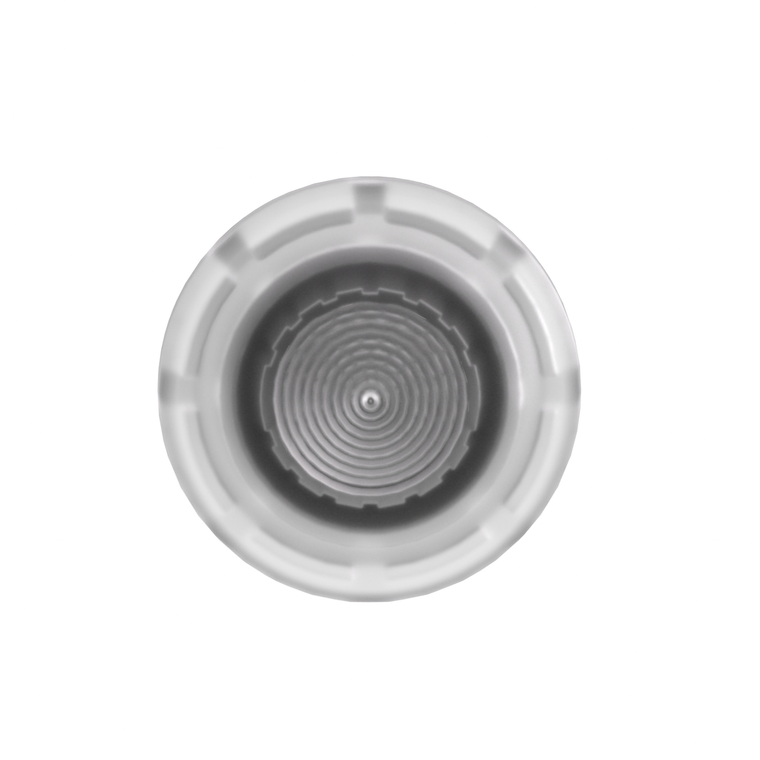

This Harmony XB4, illuminated 40mm mushroom white button head operates with a spring return / impulse mechanism. This illuminated 40mm mushroom shape push button head for universal LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its illuminated head. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The clear boot prevents growth of bacteria in joints and gaps, it makes this product ideal for high hygiene environments. Its highly ergonomic mushroom push button shape makes it ideal for use in area where operator wear thick gloves or where users have impaired movements.
- Overvoltage Category:
- class I IEC 60536
- Head Type:
- standard
- Mechanical Durability:
- 10000000 cycles
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Cad Overall Width:
- 40 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Bezel Material:
- chromium plated metal
- Circularity Profile:
- ENVEOLI1808008EN
- Product Certifications:
- GL || UL Listed || DNV || BV || CSA || LROS (Lloyds register of shipping)
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Rohs Exemption Information:
- Yes
- Standards:
- EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-5-1 || JIS C8201-1
- Operator Profile:
- white mushroom à 40 mm, unmarked
- Sale Per Indivisible Quantity:
- 1
- Warranty:
- 18 months
- Product Or Component Type:
- head for illuminated push-button
- Cad Overall Depth:
- 53 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Reach Free Of Svhc:
- Yes
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Cad Overall Height:
- 40 mm
- Protective Treatment:
- TH
- Mercury Free:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
- China Rohs Regulation:
- X
- Device Short Name:
- ZB4
- Toxic Heavy Metal Free:
- Yes
- Type Of Operator:
- spring return
- Shape Of Signaling Unit Head:
- round
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Environmental Disclosure:
- ENVPEP1808008EN
- Device Presentation:
- basic sub-assemblies
- Net Weight:
- 0.051 kg
- Ik Degree Of Protection:
- IK05 EN 50102
- Product Compatibility:
- universal LED
- Mounting Diameter:
- 22 mm
- Sustainable Offer Status:
- Green Premium product
- Range Of Product:
- Harmony XB4
