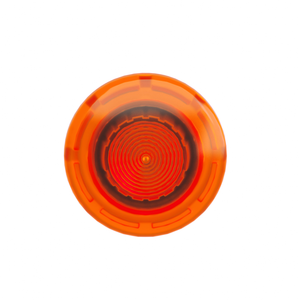

Schneider Electric ZB4BW443 Illuminated Mushroom Head Spring Return
Schneider Electric
$28.40
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB4BW443 Illuminated Mushroom Head Spring Return
This Harmony XB4, illuminated 40mm mushroom red button head operates with a spring return / impulse mechanism. This illuminated 40mm mushroom shape push button head for universal LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its illuminated head. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The clear boot prevents growth of bacteria in joints and gaps, it makes this product ideal for high hygiene environments. Its highly ergonomic mushroom push button shape makes it ideal for use in area where operator wear thick gloves or where users have impaired movements.
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Standards:
- JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-1
- Mechanical Durability:
- 10000000 cycles
- Toxic Heavy Metal Free:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Protective Treatment:
- TH
- Range Of Product:
- Harmony XB4
- Sustainable Offer Status:
- Green Premium product
- Bezel Material:
- chromium plated metal
- Device Presentation:
- basic sub-assemblies
- Product Or Component Type:
- head for illuminated push-button
- Ik Degree Of Protection:
- IK05 EN 50102
- Circularity Profile:
- ENVEOLI1808008EN
- Cad Overall Depth:
- 53 mm
- Product Certifications:
- BV || UL Listed || CSA || DNV || LROS (Lloyds register of shipping) || GL
- Net Weight:
- 0.051 kg
- Product Compatibility:
- universal LED
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ambient Air Temperature For Storage:
- -40-70 °C
- Head Type:
- standard
- Mounting Diameter:
- 22 mm
- Warranty:
- 18 months
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Operator Profile:
- red mushroom à 40 mm, unmarked
- Environmental Disclosure:
- ENVPEP1808008EN
- Cad Overall Width:
- 40 mm
- Overvoltage Category:
- class I IEC 60536
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
- Shape Of Signaling Unit Head:
- round
- Type Of Operator:
- spring return
- Reach Free Of Svhc:
- Yes
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- X
- Device Short Name:
- ZB4
- Mercury Free:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Cad Overall Height:
- 40 mm
- Sale Per Indivisible Quantity:
- 1
