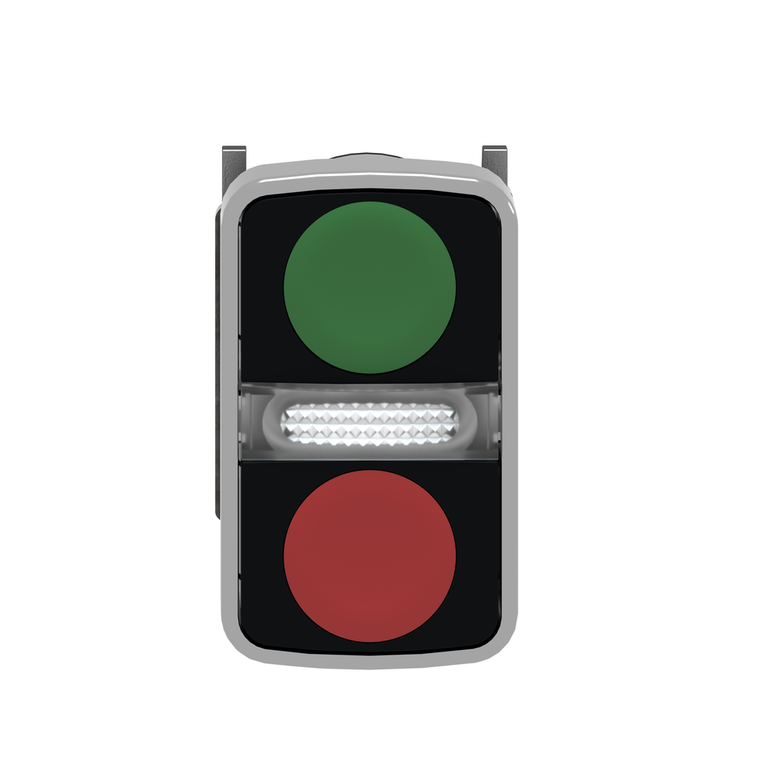

Schneider Electric ZB4BW7A3740 Metal Double Headed Pushbuttons With Pil
Schneider Electric
$48.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, illuminated double head has 1 green, 1 red button and 1 central white pilot light, operates with a spring return / impulse mechanism. This double head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its pilot light and illuminated head with clear colors, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
- Operator Profile:
- green flush, unmarked || red flush, unmarked
- Operator Profile:
- 2 flush push-buttons - 1 central pilot light
- Type Of Operator:
- spring return
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Protective Treatment:
- TH
- Mercury Free:
- Yes
- Colour Of Marking:
- black marking when white caps || white marking when green, red or black caps
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
- Ambient Air Temperature For Operation:
- -40-70 °C
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Cad Overall Depth:
- 30 mm
- Cad Overall Width:
- 30 mm
- Bezel Material:
- chromium plated metal
- Net Weight:
- 0.056 kg
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 || IP69K
- Product Compatibility:
- integral LED
- Electrical Shock Protection Class:
- class I IEC 61140
- Operators Description:
- green unmarked - red unmarked
- Shape Of Signaling Unit Head:
- rectangular
- Ambient Air Temperature For Storage:
- -40-70 °C
- Standards:
- IEC 60947-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-5-4 || IEC 60947-5-5 || JIS C8201-5-1 || IEC 60947-5-1 || JIS C8201-1
- Toxic Heavy Metal Free:
- Yes
- Ik Degree Of Protection:
- IK06 IEC 50102
- Device Short Name:
- ZB4
- Mechanical Durability:
- 1000000 cycles
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Warranty:
- 18 months
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Environmental Disclosure:
- ENVPEP1808008EN
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Cad Overall Height:
- 50 mm
- Product Or Component Type:
- head for illuminated double-headed push-button
- Mounting Diameter:
- 22 mm
- Rohs Exemption Information:
- Yes
- Head Type:
- standard
- Device Presentation:
- basic sub-assemblies
- Circularity Profile:
- ENVEOLI1808008EN
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Sustainable Offer Status:
- Green Premium product
- Reach Free Of Svhc:
- Yes
- Range Of Product:
- Harmony XB4
- China Rohs Regulation:
- X
- Product Certifications:
- LROS (Lloyds register of shipping) || BV || GL || DNV || UL Listed || CSA
- Sale Per Indivisible Quantity:
- 1
